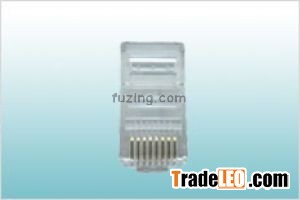

Plug SPECIFICATIONS:
1, ELECTRICAL:
UL APPLICATIONS:250 VOLTS AC MAX, AT2 AMPS.
DIELETRIC WITHSTANDING VOLTAGE:500 VOLTS AC.
INSULATION RESISTANCE:100 M(Ohms).
TERMINATION:RESISTANCE 20 m(Ohms) MAX AFTER ENVIRonMENTAL TESTING
2, MECHANICAL:
CABLE-TO-PLUG TENSILE STRENGTH:19.6 N/PCS MIN.
DURABILITY:200 MATING CYCLES.
3, MATERIAL & FINISH:
HOUSING:POLYCARBONATE, UL94V-0 OR 94V-2.
COLOR:TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
ConTACT BLADE:PHOSPHOR BRONZE.
CONDUCTOR:STRANDED & SOLID WIRE,24 AWG,26 AWG.
GOLD PLATING:3µ~50µ, ARE AVAILABLE
