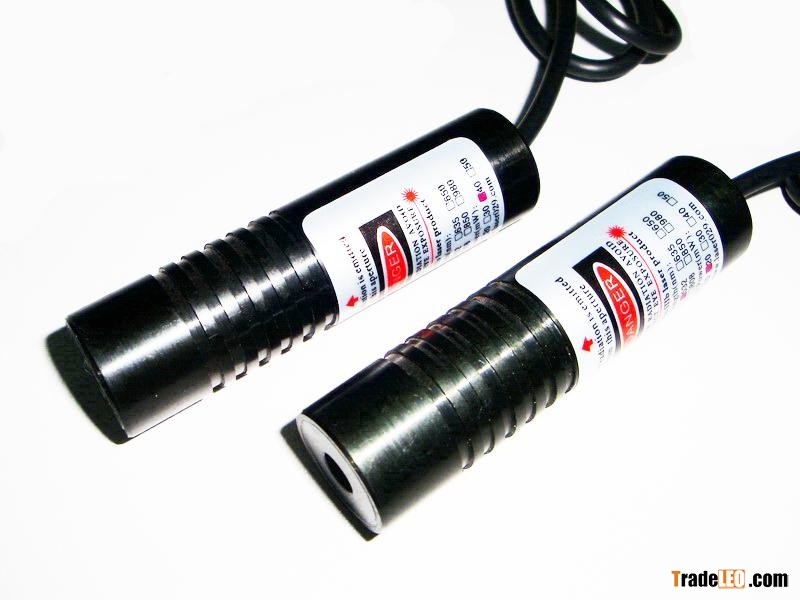

Green line laser modules, green laser line

Characteriscics： High-quality laser diode,optical glass lens, driver circuit and housing Better line quality High reliability, high stability, long life,low price

Applications: Machine vision
Industrial inspection Industrial marking devices 3D contour mapping
Positioning & visualization
Biomedical
High-end alignment Laser targeting devices and so on..

Specifications：
Wavelength：532nm

Output power：1-100mW

Laser class：II，IIIa，IIIb
Beam divergence：0.1mrad ~ 0.6mrad

Line thickness: Less then 2mm at 3m Fan angle：5°、10°、30°、45°、60°、75°、90°

Laser line accuracy：<30”(at 5m)
Operating Voltage：DC3V-5V

Operating Temperature：10℃～35℃

Storage Temperature：-30℃～80℃

Dimensions：Φ16mm ×60mm，Φ16mm ×80mm

MTTF：8000 hours
