Brand:DF
Model:03-PCB
100%Virgin high quality PTFE Teflon
ShentShenzheng Dechengwang Technology Co., Ltd is a leading manufacturer of PTFE products in China.
Relying on advanced technology, machinery and enthusiastic employee,
With more than 10 years experience, we always keep quality at first.
Below is brief introduction of PTFE sheet:
PTFE is the most chemical resistant and the best dielectric of all known plastics. It is not aging and binding. It can be used from -180*C to +260*C under no burden circumstances. PTFE has the lowest coefficient of friction of all known solid material.

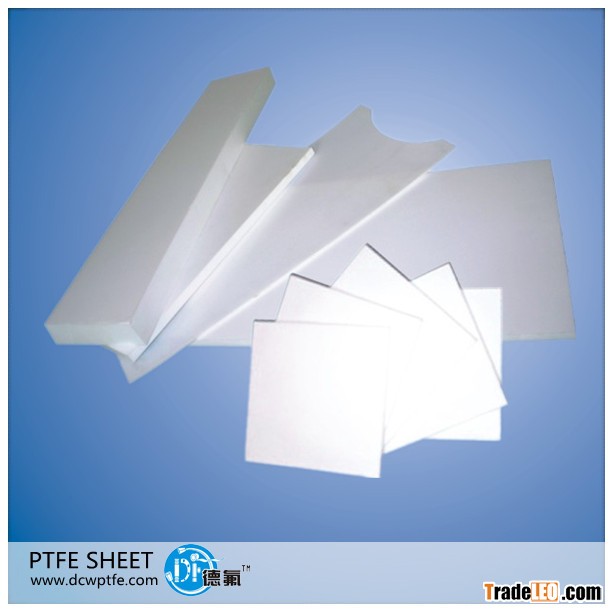

PTFE Sheet Description
PTFE sheets are produced in two different forms, which are molding sheets and skived sheets. Molding sheets are made from PTFE suspension resins. And lathed sheets are made from semi-finished PTFE materials.
Main technical index:
Project Name | Tensile Strength | Ultimate Elongation≥ | Apparent Density | withstand Voltage | Surface Resistivity(Operating Voltage 500 W) |
Unit | Mpa | % | g/cm3 | KV/mm | Ω |
Result | ≥15.0 | 150~400 | 2.2 ~2.3 | 10 | 3.7×1016 |
Products Specifications:
Name | Thickness | Allowable Error | Length*width | Remark |
| 1~70 | ±0.30~±0.50 | 250×250 | In stock with 600*600MM,1000*1000MM,can be cut into smaller products based on the existing ones |
1~70 | ±0.30~±0.50 | 300×300 | ||
1~70 | ±0.30~±0.50 | 500×500 | ||
1~70 | ±0.30~±0.50 | 600×600 | ||
1~70 | ±0.30~±0.50 | 800×800 | ||
2~60 | ±0.30~±0.50 | 1000×1000 | ||
2~60 | ±0.30~±0.50 | 1200×1200 | ||
3~60 | ±0.30~±0.60 | 1200×1800 | ||
3~60 | ±0.30~±0.60 | 1500×1500 | ||
3~60 | ±0.30~±0.60 | 1000×2000 |
PTFE sheets Application:
They can be cut into electrical insulation that can used under various kinds of frequency, the seal liner of various kinds of corrosively medium, anti-sticking materials, lubrication materials, etc.
Dechengwang PTFE sheet Characteristics:
1 Molded, skived or cut from 100virgin PTFE and has the best chemical corrosion resistance among known plastics.
2 In stock with 600*600MM,1000*1000MM
3 Singlejar hydraulic press machine with size of 3500 metric tons makes strength on every point average.
4 Molded sheet surface is smooth without defects
5 Small order quantity is acceptable
6 Competitive prices
Product Detail:
Selling points
1.we are manufacturer with more than 10 years experience of PTFE ,the quality can be guarantee.
2.100%PTFE material Eco-friendly. Factory price
Order
1. Plz let us know your specification
2, We will check the price and stock
3, stock: delivery with 1 day, Without stock: delivery with one week
Payment terms
we can accept T/T,L/C ,Small order can go throught PAYPAL, ESCROW, western union.
Package
1.inner packing:plastic bag. Outside packing :carton packing .your own packing design : SURE!!.
2.detail information as below:
Delivery Way(handing )
By Express(DHL ,UPS,EMS FedEx) or by air ,if your quantity is large can be considering by sea.
Special service
If you want to purchase some products for testing the market .we can considering low the MOQ .any advice of the product can be contact us feel free .
Why choose us?
1, Warranty: With more than 10 years experience in PTFE Filed, we can provide you the PTFE product which is just suitable or even beyond your demand. Fulfill your quality and quantity requirements.
2, Service: Customer satisfaction is always our pushing goal, we are always here for you.
3, Customize: tailor-made for you, so that you can do the batch.
