Model:HT1001
Send Inquiry

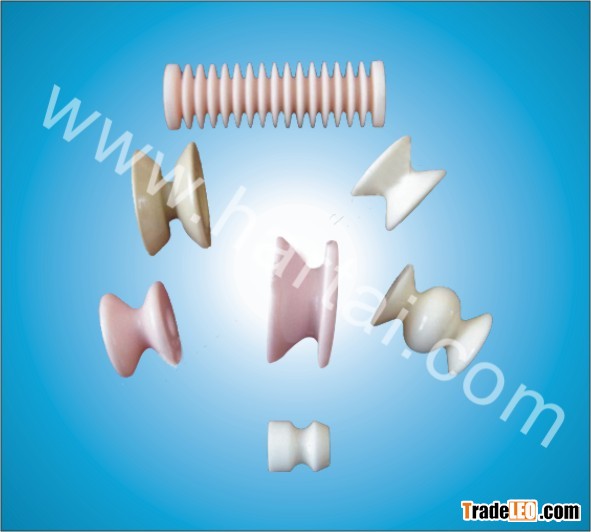

Ceramic guide wheel (ceramic rolleris used on coil winding machine for enamel insulated wire or silk thread appropriate amount guiding, the china circle makes from precise ceramics, the surface smoothness that the china marks with a circle reaches Ra 0.2, moves up and down when rotating being smaller than 0.15 , material selects and uses 99%'s AL2O3 , hardness HRa 88, density 3.85.
ceramic idler pulley(ceramic roller)wire guide pulley is used on coil winding machine and textile machine.
| ***** Specification table of ceramic wheel | |||||
| Modle No | A(mm) | B(mm) | C(mm) | D(mm) | |
| HT1001 | 7.8 | 6 | 2 | 3.2 | |
| HT1002 | 8 | 8 | 2 | 4 | |
| HT1003 | 10.6 | 7.3 | 2 | 3.5 | |
| HT1004 | 12 | 10 | 4 | 4 | |
| HT1005 | 14 | 10 | 3 | 6 | |
| HT1005-C04 | 21.5 | 14 | 4 | 10 | |
| HT1005-C05 | 21.5 | 14 | 5 | 10 | |
| HT1006-C05 | 30 | 24 | 5 | 11 | |
| HT1006-C06 | 30 | 24 | 6 | 11 | |
| HT1006-C07 | 30 | 24 | 7 | 11 | |
| HT1006-C08 | 30 | 24 | 8 | 11 | |
| HT1007-C05 | 35 | 24 | 5 | 11 | |
| HT1007-C06 | 35 | 24 | 6 | 11 | |
| HT1007-C07 | 35 | 24 | 7 | 11 | |
| HT1007-C08 | 35 | 24 | 8 | 11 | |
| HT1008-C05 | 40 | 24 | 5 | 12 | |
| HT1008-C06 | 40 | 24 | 6 | 12 | |
| HT1008-C07 | 40 | 24 | 7 | 12 | |
| HT1008-C08 | 40 | 24 | 8 | 12 | |
| HT1009-C09 | 45 | 36 | 9 | 13.5 | |
| HT1009-C10 | 45 | 36 | 10 | 13.5 | |
