Model:GM37-3530
Send Inquiry

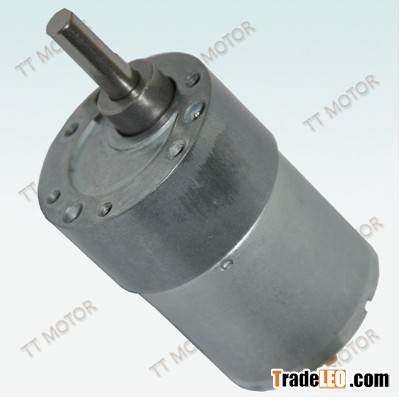

GM37-3530
37mmEccentric out shaft gearbox plus 520 & 3530 & 3527 and TEC3650 & 3640 brushless motor
Small size dc gear motor with low speed and big torque
Characters:
- 37mmgear motor provide 1.0Nm torque and more reliable
- Suitable to small diameter, low noise and big toque application
- Dc Gear motors can match encoder,3-16pps
- Reduction Ratio: 6、10、19、30、44、56、90、131、169、270、394、506、810、976
Gear Motor Dimensions (mm)
Motor Technical Data
Type | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
3527-1256 | 12 | 5600 | 70 | 4100 | 50 | 350 | 2.1 | 140 | 1.2 |
3530-24100 | 24 | 10000 | 70 | 9300 | 30 | 220 | 1.3 | 300 | 3.6 |
3530-12100 | 12 | 10000 | 130 | 9300 | 30 | 400 | 2.9 | 300 | 5.5 |
