Model:33206
Send Inquiry

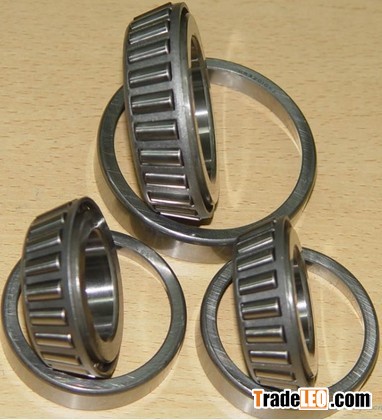

We have other types of Taper Roller Bearings.If you have demands,please contact with me.
Bearing No | Principal Dimensions (mm) | Basic Load Ratings KN | Mass | |||||||
| d | D | T | B | C | Rmin | rmin | dyc Cr | stc Cor | kg | |
| 33205 | 25 | 52 | 22 | 22 | 18 | 1 | 1 | 47 | 56 | 0,216 |
| 33206 | 30 | 62 | 25 | 25 | 19,5 | 1 | 1 | 64 | 75 | 0,343 |
| 33207 | 35 | 72 | 28 | 28 | 22 | 1,5 | 1,5 | 87,5 | 106 | 0,519 |
| 33208 | 40 | 80 | 32 | 32 | 25 | 1,5 | 1,5 | 113 | 126 | 0,701 |
| 33209 | 45 | 85 | 32 | 32 | 25 | 1,5 | 1,5 | 115 | 150 | 0,789 |
| 33210 | 50 | 90 | 32 | 32 | 24,5 | 1,5 | 1,5 | 119 | 160 | 1,17 |
| 33211 | 55 | 100 | 35 | 35 | 27 | 2 | 1,5 | 143 | 196 | 1,17 |
| 33212 | 60 | 110 | 38 | 38 | 29 | 2 | 1,5 | 135 | 189 | 1,55 |
| 33213 | 65 | 120 | 41 | 41 | 32 | 2 | 1,5 | 183 | 280 | 2,02 |
| 33214 | 70 | 125 | 41 | 41 | 32 | 2 | 1,5 | 168 | 240 | 2,06 |
| 33215 | 75 | 130 | 41 | 41 | 31 | 2 | 1,5 | 199 | 282 | 2,27 |
| 33216 | 80 | 140 | 46 | 46 | 35 | 2,5 | 2 | 264 | 390 | 2,89 |
| 33217 | 85 | 150 | 49 | 49 | 37 | 2,5 | 2 | 286 | 236 | 3,64 |
| 33218 | 90 | 160 | 55 | 55 | 42 | 2,5 | 2 | 330 | 495 | 4,77 |
| 33219 | 95 | 170 | 58 | 58 | 44 | 3 | 2,5 | 405 | 560 | 5,54 |
| 33220 | 100 | 180 | 63 | 63 | 48 | 3 | 2,5 | 430 | 655 | |
