Brand:TIANYUAN
Model:GY160

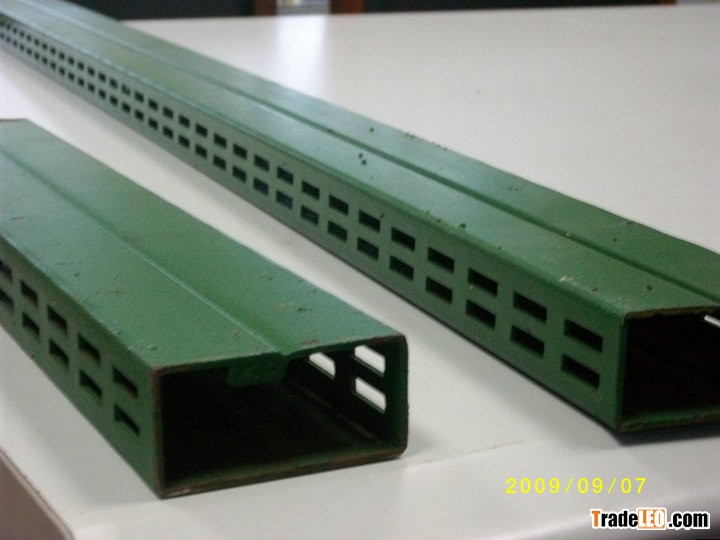

Shelf Beam Roll Forming Machine Line, Storage Shelf Rack Roll Forming Machine Line
Equipment Structure
This production line consists of leveler,feeding/punching, roll forming, cutting,etc.
The production line is composed of de-coiler, leveler,punching, forming , cutting system , electric control system , etc.
Technical parameter
| NO. | Item | Unit | Parameter | Remark | |
|
1 | Material | Type |
|
galvanized sheet,mild steel,etc, |
|
| Strength of material sheet | Map | ≥350 |
| ||
| Thickness of material sheet | mm | 1.2~2.5 | customizable | ||
| 2 | Profile sizes | mm | See Figure |
| |
| 3 | Production speed | m/min | 6~8 | customizable | |
| 4 | Material of roller |
| GCr15 quenching treatment |
| |
| 5 | Drive type |
| Gearbox driven |
| |
| 6 | Motor Power | kw | about 45 |
| |
| 7 | Electric control system |
| PLC variable frequency control |
| |
| 8 | Dimensions(Length*width*height) | m | 35X4X3.9 | | |
