Gear Ratio:61:1

Tracking precision:≤0.09°

Output torque:6.5kNm
Tilting moment Torque:12kNm
Holding torque:12kNm
Static Axial Rating:338KN
Static Radial Rating:120kN
Dynamic Axial Rating :81KN
Dynamic Radial Rating:81kN
Weight:58Kgs

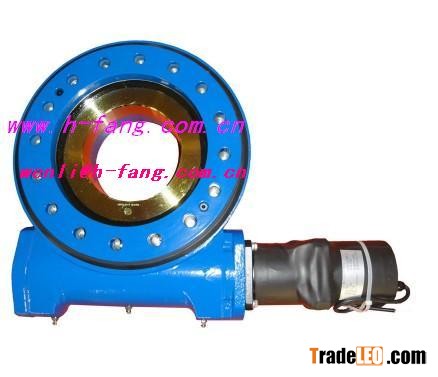

1.Huafang  slewing drive are widely used in the solar tracking systems, special construction vehicles, port machinery and small wind turbines

2.Huafang is fully equipment with all advanced machines for manufacturing, assembly, inspection, test processes and automatic cleaning and painting and power coating lines.

Our slewing drive product, allows a full controlled rotation for industrial use, as Solar trackers, cranes for trucks, lift for buildings, satellite Antennas, and other industrial applications need accuracy on movement. Those products are designed for long life, working in hard environmental conditions such as sand, direct sun, high humidity or rain, IP 65 classified. The product is design in low backlash concept to provide best movement solutions. The engine of the drive, can be powered by hydraulic or Electric motor,
