Ⅰ. Size(Normalsize of aluminum strip)
| Pipe Diameter (mm) | Aluminum Size Width×Thickness (mm) | Width Tolerance | Thickness Tolerance | Inner Diameter | Outer Diameter |
| 1014 | 42×0.20 | ±0.1 (mm) | ±0.01 (mm) | 150/300 (mm) | 1050-1180 (mm) |
| 1216 | 48×0.20 | ||||
| 48×0.21 | |||||
| 49×0.21 | |||||
| 1418 | 55×0.21 | ||||
| 55×0.24 | |||||
| 55×0.25 | |||||
| 1620 | 61×0.23 | ||||
| 61.5×0.23 | |||||
| 61×0.28 | |||||
| 61×0.30 | |||||
| 2025 | 77×0.25 | ||||
| 76×0.26 | |||||
| 76×0.32 | |||||
| 2632 | 97×0.31 | ||||
| 97×0.37 | |||||
| 99×0.30 |
Note: any other sizes are also available
Ⅱ. PhysicalProperties
1. Temper: O
2. Elongation: ≥20%
3. Ultimate Tensile Strength (having an effect on hydrostaticpressure resistance)
| Alloy 8011 | Thickness≥0.28mm | 115-130MPa |
| Other thickness | 115-125MPa | |
| Alloy R3003 | All size | 123-135MPa |
4. Vickers Hardness (having an effect on both hydrostatic pressureresistance and welding quality)
| Alloy 8011 | Thickness≥0.32mm | 30.0-33.5 |
| Other thickness | 28.5-33.5 | |
| Alloy R3003 | All size | 31.5-36.5 |
Specific sizes with corresponding properties:
0.21*48 UTS: 115-120MPa HV: 29-30
0.24/0.25*55 UTS:116-120MPa HV: 29-30.5
0.28*61 UTS:117-125MPa HV: 30-31.5
0.32*76 UTS:≥120MPa HV:31-32
5. Peel Strength
Minimum value: ≥60N/25mm
6. Pipe ring peelstrength (This item is tested on the pipe production line)
| Pipe Diameter(mm) | 14 | 16 | 18 | 20 | 25 | 32 | 40 | 50 | 63 | 75 |
| Minimum value of Pipe ring peel strength (N/10mm) | 30 | 35 | 40 | 50 | 60 | 70 | ||||
Ⅲ.Appearance Quality
1. Free of grease (grease＜10mg/m2);
2. No tarnishing, no stains, no rolling marks, no oxidation, noaluminum powder and other defects;
3. Smooth coil surface
Ⅳ.Package, transportation, and storage

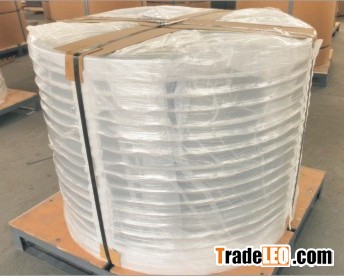

Package is as customers’ requirements, usually 3 vacuumized layersinner and one layer of craft paper outside which can completely resist humidityand oxidation ; metal pallet.
Storage Tips:
1. Do not clash or throw aluminum coil when carried;
2. The aluminum coil should be drily stored away from heat resource,oil and chemicals. Outdoor storage is prohibited;
3. To use aluminum coil as early as possible;
4. Do not open those aluminum coils you won’t use shortly. And sealthe opened package and put a desiccant in the package to resist the humidityand oxidation.
