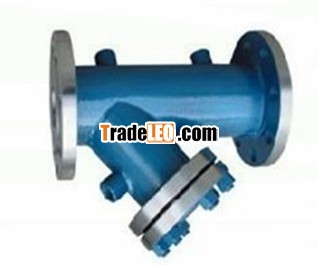

Jacketed Y Type Strainer is the best choice if users want to remove the pipeline debris and also want to preserve the system heat.so as to save energy. Jacketed Y Type Strainer is to weld a jacket to the outside of normal Y Type Strainer, in which insulation medium is inserted to preserve the system heat.so as to save energy.
The Standard that Jacketed Y Type Strainer applied:
Design specifications: HG / T 21637
Structure length: GB / T 12221
Flange: JB / T 79
Test and inspection: JB / T 9092
Product ID: GB / T 12220
Delivery specification: JB / T 7928
Jacketed Y-type strainer main external connection dimensions:
| Nominal diameter DN | 25/50 | 32/65 | 40/65 | 50/80 | 65/100 | 80/125 | 100/150 | 125/200 | 150/200 | 200/250 | |
|
L | Full clip | 220 | 250 | 250 | 290 | 390 | 430 | 500 | 550 | 550 | 600 |
| Half clip | 250 | 300 | 300 | 320 | 420 | 500 | 600 | 650 | 650 | 750 | |
| H | 100 | 150 | 150 | 175 | 270 | 350 | 420 | 420 | 420 | 460 | |
Jacketed Y type strainer outline:
Jacketed Y Type Strainer, also called Insulated Y-type strainer is an indispensable to a device to protect valves and equipment in normal use. It's usually installed in the inlet of normal valves, pressure relief valve, water control valve or other devices. The strainer has following features: advanced structure, small resistance and convenient sewage. Strainer is applied to water, oil and gas or steam pipelines. Generally the mesh size is 18-30 mesh / cm2 for water, 40-100 mesh cm2 for gas or steam, 100-480 mesh / cm2 for Oil, and some other sizes can also be available according to clients' request.
