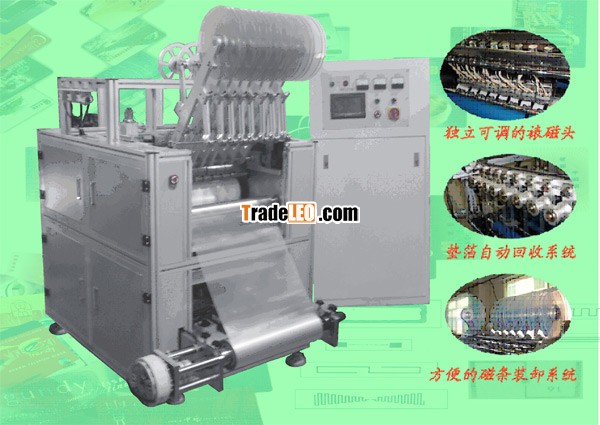

Function introduction:

 Coiled magnetic strip can be mounted on thePET or PVC film or sheet material when the recycling system will recycle themagnetic strip foil. After the mounting finished, cutting it into prearrangelength. The magnetic strip can be mounted and cut synchronously. The wholeprocess finished automatically，with stable working condition.

Range for apply material：

Coil film：Thickness:0.04-0.2mm.

Sheet：Thickness:0.25-0.8mm.

Function and Feature:

1. The system is automatically controlledby PLC and operated on touch screen human-machine inter face.

2. Feed sending by driven servo-motor,which controls running speed and the length of the feeding film both speed andlength are adjusted.

3. Several groups roller impact thestructure, the pressure of the cylinder can be adjusted to insure the coveredfilm is parallel and orderliness.

4. The motivity for the film cutting isdriven by cylinder, with simple structure and good working state.

5. The recycling system recycles themagnetic stripe foil automatically.

6. Use barometric pressure spindle materialloading and unloading system, it is convenient to load and upload material.

7. Heating temperature controlling method：use the heater to heat up and theimported thermocouple cooperating with temperature controller to control thetemperature，it is easy toset and the temperature controller is precise.

8. The temperature and pressure of eachmagnetic laying head can be adjusted solely.

9. Use automatic tension control system tosend feeds, so that conveying of film can be stable.

10. It realizes the processing of coil filmto sheet material or sheet material to sheet material stripe laying.

Technical parameter:
