Model:5-1/2", 7" ,9-5/8"
1.Brief Introduction

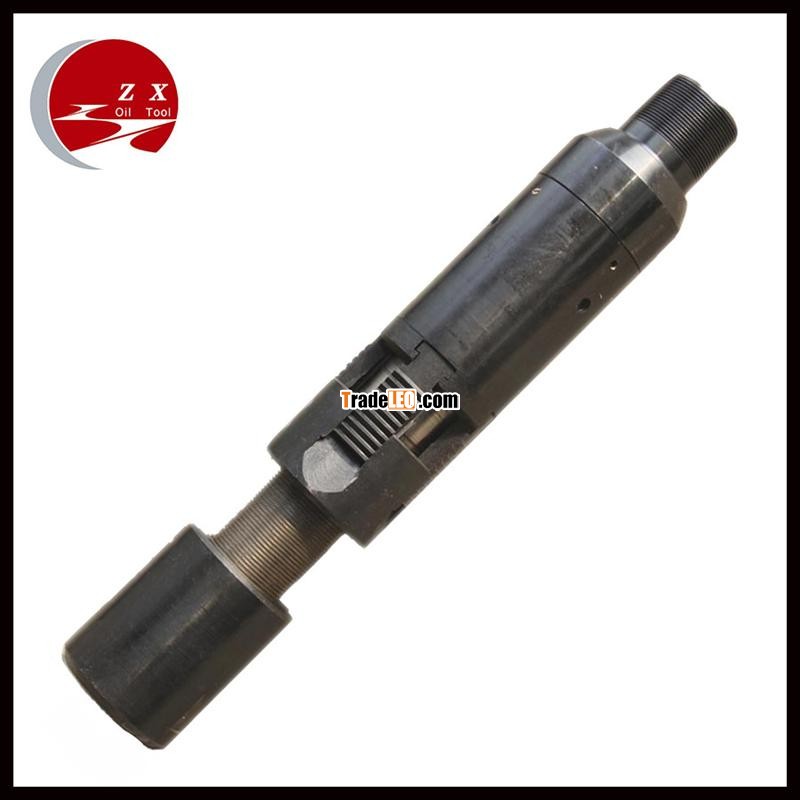

The tubing anchor effectively reduce rod, tubing, and casing wear. This cuts operating costs. Elimination of breathing and buckling of the tubing string also increases production by lengthening the effective stroke of the pump, which increases volumetric efficiency.
2.Technical and Specification
| Model | Length （mm） | Max OD （mm） | Min ID （mm） | Pressure（MPa) | Max OD when teeth open | Setting Pressure （MPa) | Connecting Thread | Casing ID to be used |
| 51/2〃 | 580 | 115 | 62 | 25 | 128 | 8-12 | 2-7/8 TBG | 121-124 |
| 7〃 | 660 | 150 | 76 | 25 | 168 | 8-12 | 3 1/2 TBG | 155-166 |
| 9 5/8〃 | 970 | 208 | 76 | 25 | 245 | 8-12 | 3 1/2 TBG | 218-240 |
| 9 5/8〃 | 970 | 208 | 98 | 25 | 245 | 8-12 | 4 1/2 TBG | 218-240 |
3.Delivery and Packing
a) The delivery as client's requirement
b)The packing as standard packing
