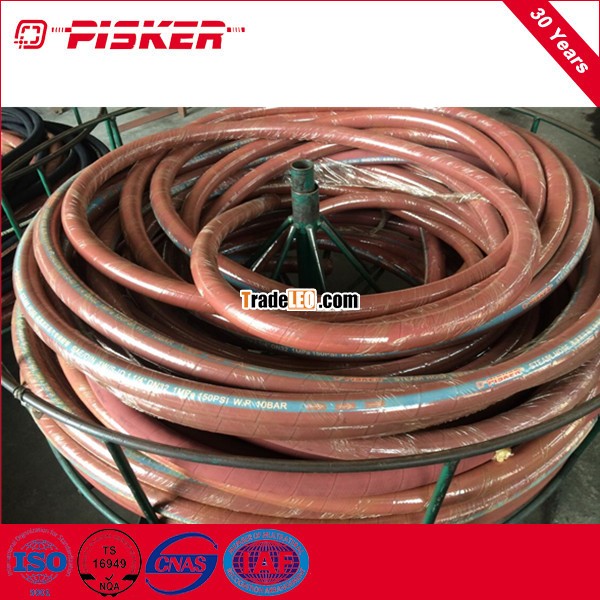

Model:Steam Rubber Hose
High Temperature High Pressure Steam Rubber Hose
Wire Braided Steam Hose: Q/HYT03 STANDARD
Construction:Made of excellent heat-resistant rubber, The reinforcement is braided
with Copper facing wire.
Applications:For conveying saturated steam and superheated water at a temperature
below 150 ℃ continually or at a temperature below 160 ℃ intermittently.
| W/B | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| DN | inch | mm | MPa | psi | MPa | psi | mm | metres | |
| 1W | 10 | 3/8 | 21.5 | 1.0 | 150 | 4.0 | 570 | 130 | 20/ 50 |
| 13 | 1/2 | 24.5 | 1.0 | 150 | 4.0 | 570 | 180 | 20/ 50 | |
| 16 | 5/8 | 27.5 | 1.0 | 150 | 4.0 | 570 | 205 | 20/ 50 | |
| 19 | 3/4 | 30.5 | 1.0 | 150 | 4.0 | 570 | 240 | 20/ 50 | |
| 22 | 7/8 | 33.5 | 1.0 | 150 | 4.0 | 570 | 280 | 20/ 50 | |
| 25 | 1 | 37.0 | 1.0 | 150 | 4.0 | 570 | 300 | 20/ 50 | |
| 32 | 1 1/4 | 44.0 | 1.0 | 150 | 4.0 | 570 | 420 | 20/ 40 | |
| 38 | 1 1/2 | 50.5 | 1.0 | 150 | 4.0 | 570 | 500 | 20/ 40 | |
| 45 | 1 3/4 | 57.5 | 1.0 | 150 | 4.0 | 570 | 500 | 20/ 40 | |
| 51 | 2 | 63.5 | 1.0 | 150 | 4.0 | 570 | 630 | 20/ 40 | |
| 64 | 2 1/2 | 77.5 | 1.0 | 150 | 4.0 | 570 | 700 | 20/ 40 | |
| 2W | 10 | 3/8 | 23.0 | 2.0 | 300 | 6.0 | 860 | 130 | 20/ 50 |
| 13 | 1/2 | 26.0 | 2.0 | 300 | 6.0 | 860 | 180 | 20/ 50 | |
| 16 | 5/8 | 29.0 | 2.0 | 300 | 6.0 | 860 | 205 | 20/ 50 | |
| 19 | 3/4 | 32.0 | 2.0 | 300 | 6.0 | 860 | 240 | 20/ 50 | |
| 22 | 7/8 | 35.0 | 2.0 | 300 | 6.0 | 860 | 280 | 20/ 50 | |
| 25 | 1 | 38.5 | 2.0 | 300 | 6.0 | 860 | 300 | 20/ 50 | |
| 32 | 1 1/4 | 45.5 | 2.0 | 300 | 6.0 | 860 | 420 | 20/ 40 | |
| 38 | 1 1/2 | 52.0 | 2.0 | 300 | 6.0 | 860 | 500 | 20/ 40 | |
| 45 | 1 3/4 | 59.0 | 2.0 | 300 | 6.0 | 860 | 500 | 20/ 40 | |
| 51 | 2 | 65.0 | 2.0 | 300 | 6.0 | 860 | 630 | 20/ 40 | |
| 64 | 2 1/2 | 79.0 | 2.0 | 300 | 6.0 | 860 | 700 | 20/ 40 | |
Steel wire braided hydraulic hose(one or two steel wire braided layer)
SAE 100R1AT/DIN EN853 1SN
SAE 100R2AT/DIN EN853 2SN
DIN-EN857 1SC
DIN-EN857 2SC
SAE 100R1A/DIN EN853 1ST
SAE 100R1A/DIN EN853 2ST
SAE 100R5
SAE 100R16
SAE 100R17
Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral layers)
DIN EN856 4SP
SAE 100R9
SAE 100R12
DIN EN856 4SH
SAE 100R13
SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3
SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7
SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/TEFLON HOSE
Other production:rubber hose
1.steam hose
2.Welding hose:LPG hose , Twin Line hose,OXYGEN hose,acetylene hose
3.Air/Water hose
4.Fuel/oil hose
5.Water suction/delivery hose
6.Sandblast hose
