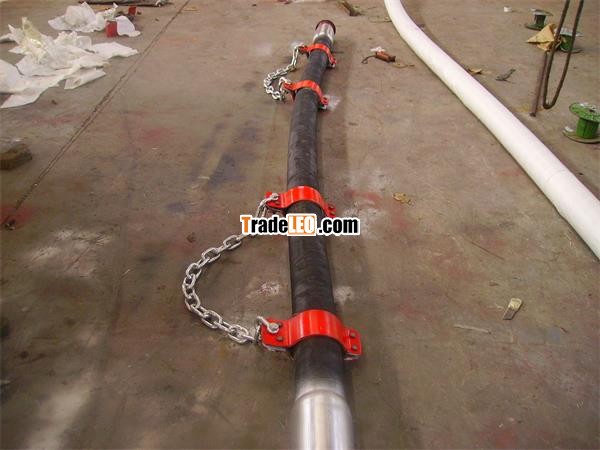

Rotary Drilling Hose/Vibrator Hose - Sell

Rotary Drilling Hose/Vibrator Hose

2016-10-26 17:44 Views:221

Price:Negotiable

Specification:
1.API 7K Rotary
Hose
2.Swaged
coupling
3.Forged
union
High pressure Rotary Drilling
hose
Construction:
Tube: NBR, specially
compounded for handling abrasive, corrosive and oil-based drilling
mud
Reinforcement: Multiple layers
of polyester cord over tube, high tensile steel cables.
Cover: NBR, Specially compounded,
resistant to abrasion, corrosion, cutting, gouging, oil and
weather.

Application:Flexible Connection between
standpipe and swivel(Rotary Drilling) or between pump and standpipe(Rotary
Vibrator) for pumping mud at extremely high pressure in oil drilling and
exploration work.

Fitting:Hammer Unions, API Male End,
Flanges
  Grade
A

ID	W·P		T·Pg		Min. B R	Weigh Hose	Weight Couplings	Thread in
mm	Mpa	Psi	Mpa	Psi	mm	Kg/m	Kg/pc	Thread in
51	11	1500	22	3000	900	3.09	5.50	2LP,21/2LP,23/8TBG,API
64	11	1500	22	3000	900	4.08	8.20	3LP,27/8TBG,API

Grade
B

ID	W·P		T·Pg		Min. B R	Weight Hose	Weight couplings	Thread in
mm	Mpa	Psi	Mpa	Psi	mm	kg/m	kg	Thread in
51	14	2000	28	4000	900	3.37	5.90	2LP,21/2LP,23/8TBG,API
64	14	2000	28	4000	900	4.44	8.95	3LP,27/8TBG,API
76	14	2000	28	4000	1200	8.06	16.60	4LP,31/2TBG,API
89	14	2000	28	4000	1400	10.33	22.50	4LP,4TBG,API
102	14	2000	28	4000	1400	12.60	26.00	4LP,5LP,41/2TBG,API
127	14	2000	28	4000	1500	15.94	40.20	6LP,API
152	14	2000	28	4000	1800	22.32	50.50	6LP,API

Grade C

ID	W·P		T·Pg		Min. B R	Weight Hose	Weight Couplings	Thread in
mm	Mpa	Psi	Mpa	Psi	mm	kg/m	Kg/pc	Thread in
51	28	4000	56	8000	900	6.05	6.80	2LP,21/2LP,23/8TBG,API
64	28	4000	56	8000	900	8.00	12.30	3LP,27/8TBG,API
76	28	4000	56	8000	1200	13.70	21.00	4LP,31/2TBG,API
89	28	4000	56	8000	1400	17.60	31.80	4LP,4TBG,API
102	28	4000	56	8000	1400	21.50	35.00	4LP,5LP,41/2TBG,API
127	28	4000	56	8000	1500	29.80	51.00	6LP,API
152	28	4000	56	8000	1800	43.68	76.00	6LP,API

Grade
D

ID	W·P		T·Pg		Min. B R	Weight Hose	Weight Couplings	Thread in
mm	Mpa	Psi	Mpa	Psi	mm	kg/m	Kg/pc	Thread in
51	35	5000	70	10000	900	6.40	7.50	2LP,21/2LP,23/8TBG,API
64	35	5000	70	10000	900	10.50	13.50	3LP,27/8TBG,API
76	35	5000	70	10000	1200	14.40	24.00	4LP,31/2TBG,API
89	35	5000	70	10000	1400	19.65	35.20	4LP,4TBG,API
102	35	5000	70	10000	1400	30.50	40.50	4LP,5LP,41/2TBG,API
127	35	5000	70	10000	1500	42.60	57.00	6LP,API
152	35	5000	70	10000	1800	50.67	84.20	6LP,API

Grade
E

ID	W·P		T·Pg		Min. B R	Weight Hose	Weight Couplings	Thread in
mm	Mpa	Psi	Mpa	Psi	mm	kg/m	Kg/pc	Thread in
51	52	7500	104	15000	1000	10.55	11.20	2LP,21/2LP,23/8TBG,API
64	52	7500	104	15000	1200	15.22	21.20	3LP,27/8TBG,API
76	52	7500	104	15000	1200	25.52	27.10	4LP,31/2TBG,API
89	52	7500	104	15000	1400	33.50	40.60	4LP,4TBG,API
102	52	7500	104	15000	1500	37.27	53.60	4LP,5LP,41/2TBG,API
127	52	7500	104	15000	1800	58.45	67.50	6LP,API

Grade
F

ID	W·P		T·Pg		Min.B R	Weight	Weight	Thread in
mm	Mpa	Psi	Mpa	Psi	mm	kg/m	Kg/pc	Thread in
51	70	10000	105	15000	1200	12.20	14.50	2LP,21/2LP,23/8TBG,API
64	70	10000	105	15000	1200	21.28	25.80	3LP,27/8TBG,API
76	70	10000	105	15000	1500	32.50	36.40	4LP,31/2TBG,API
89	70	10000	105	15000	1500	40.96	55.80	4LP,4TBG,API
102	70	10000	105	15000	1600	48.20	65.90	4LP,5LP,41/2TBG,API
