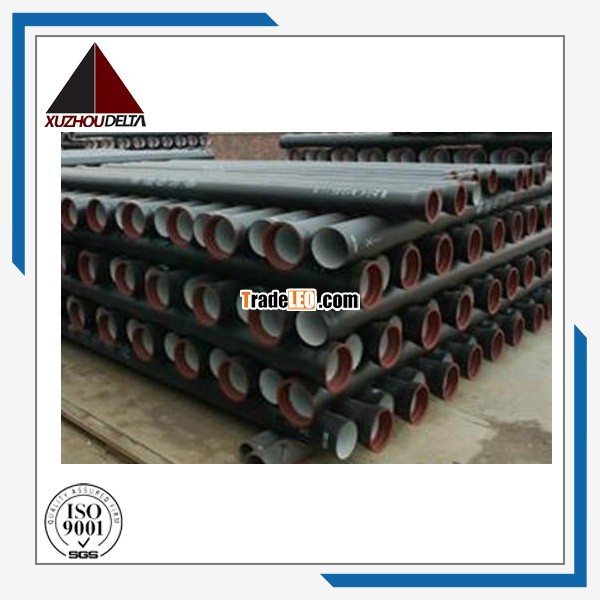

ISO2531 Ductile Iron Pipe

Wall thickness class is K12 for fitting without branch, and K14 for fitting with branch.

Management Certification:ISO 9000/9001/9004/19011: 2000&SGS

Specifications:

1.size : DN80-DN2000 available with PN16 or PN10 or PN25

2.Standard : ISO2531/EN545/EN598/AWWA standard

3.Material : Ductile iron 500-7/ 450-10 in accordance with ISO 1083

4.Color:Black Bitumen or Blue FBE / Epoxy Coating(red)

5.Technical: Casting

6.Socket / flange: PN10 / PN16 / PN25

7.Length=6mor cut into 5.6m, 5.7m, 5.8m according to customer.

8.Coating: Fusion bonded epoxy to 300 microns Dry Film Thickness Portland cement lining internally and   zinc-rich paint with not less than 70 microns bitumen externally.

Internal Coating	External Coating
cement mortar lining	zinc coating +bitumen painting
liquid epoxy painting	liquid epoxy painting
expoxy applied by FBE	expoxy applied by FBE
