Model:10-50-20
Website:www.myfirehose.com

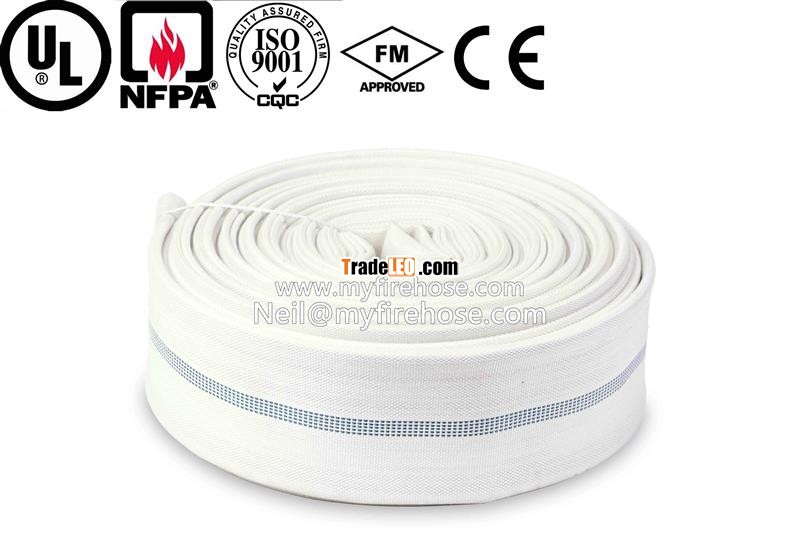

PVC fire hose
1. Working pressure:0.8MPa,1.0MPa,1.3MPa,1.6MPa,2.0MPa
2.Inner dia.:1"~6”inch
3)Bursting Pressure:24Bar,30Bar,39Bar,48Bar,60Bar or according to your requirement
4)Length:10m-30m
5)Colors of Outside Jacket and Inner Lining: As per Customers' Requirements
6)Jacket Woven the warp by high strength polyester staple,the weft by high strength polyester filament with low elongation,twill or plain
7)Worthwhile,Light,Soft,Abrasion Resistance,High Strength of Adhesion,Weather Resistance,High pressure resistant
8)Application:Agriculture Irrigation,Industrial and Municipal Building Fire Fighting,Military,Marine Fire Fighting, Interior Rack and Reel Hose,Commercial and Civil Engineering
9)Offer OEM Service
10)Packing: International standard package or according to customers' requirements
Technical Parameters:
| Technical Requirements | Temperature Range | length | |||
| Size (Inch/mm) | Working Pressure | Burst Pressure | -22℉ to 158℉ (-30℃ to 70℃) | 15-30m/50-100FT | |
| 1" | 25 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 1-1/2" | 38 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 1-3/4" | 45 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 2" | 52 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 2-1/2" | 65 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 3" | 75 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 4" | 100 | 8/125, 10/150, 13/190, 16/235. 20/300 | 24/375, 30/450, 39/570, 48/705. 60/900 | ||
| 5" | 125 | 8/125,10/150 | 24/375, 30/450 | ||
| 6” | 150 | 8/125,10/150 | 24/375, 30/450 | ||
