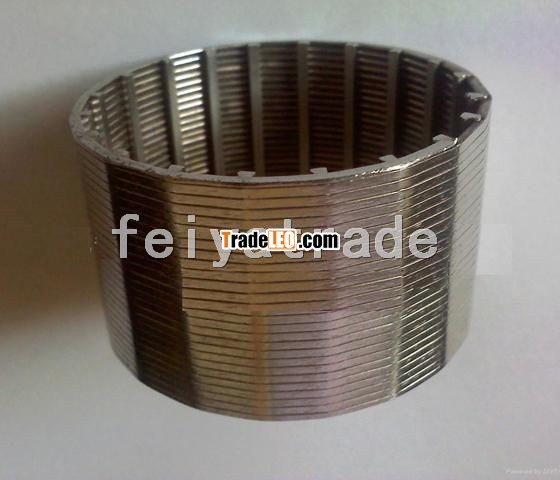

Xinlu water well screen/wedge wire water well screen provides the maximum inlet area of any well screen design. This screen is versatile and can be adapted to many industrial functions. The strength and durability of this type of screen comes from the shape and mass of the wrap wire and rods combined with the efficiency of the welding techniques used in manufacturing.

The special trapezoidal shaped wire is drawn from carefully specified material, double-annealed and roll formed to precise desired dimensions. The wire is then spiral wrapped around the longitudinal rods of the same material and resistance welded at each point of contact.

Specification of water well screen/wedge well screen

Slot（mm） 0.15，0.25，0.50，0.75，1.00，1.50，2.00，3.00

Lengths 6Mts.&3Mts

Grades different grades suitable for tube well depths up to300ft.,600ft.,900ft.and1500ft.

Material low carbon galvanized steel(LCG)and Stainless Steel(SS-304)

End Connection: Plain beveled ends for butt welding or threaded.
