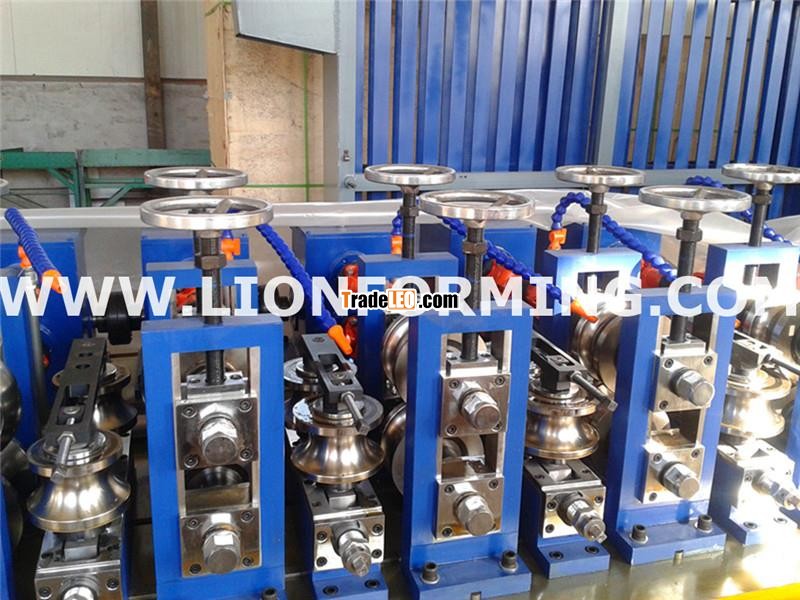

Welding Tube Forming Machine
-pipe machine for different shapes
-pipe machine 70m/min
-pipe machine welding
-pipe machine

Pipe Machine

1. Specification

This unit is specialized in manufactureing the round/square tube and the other tube.The diameter welded tubes is φ19—φ76 mm,wall thickness is 0.8~3 mm

2. Applicable materials:
(1)hot/cold/color coated steel strip
(3) thickness of Strip Steel: 0.8~3.0 ,
(4)width of the Strip Steel; 60~240,
(5)coil inner diameter φ350~φ450mm
(6)coil outer diameter φ800~1200

(7)coil weight: ≤1000

3. Size range of the machining stell tube
(1)diameter:φ19--76 (2)thinckness:0.8~3.0(square tube,special tube≤2.5mm

4. Process chart

Strip steel→decoiling→Cut and butt weling→strips storage→levelling→forming→welding→milling

raw edge→water cooling→sizing→Bandrichten→cutting→stand

5. Speed:20~70M/min.

6. High frequency power:200KW

7.User configuration:(reference)
(1)space charge of the unit:45M×4M(L×W)
(2)space charge of electrical equipmen:5M×3M(L×W)
(3)High Frequency Power:200KW
(4)shearing machine,butt welding machine
(5)tube stand 1 piece
(6)saw
(7)bar magnet for welding
(8)2pcs lift pump for High frequency and welding machine
(9)Cricuit of the unit.
(11)one pcs air compressor
