Concrete Rubber Recesses
Accessories for Spherical head anchor

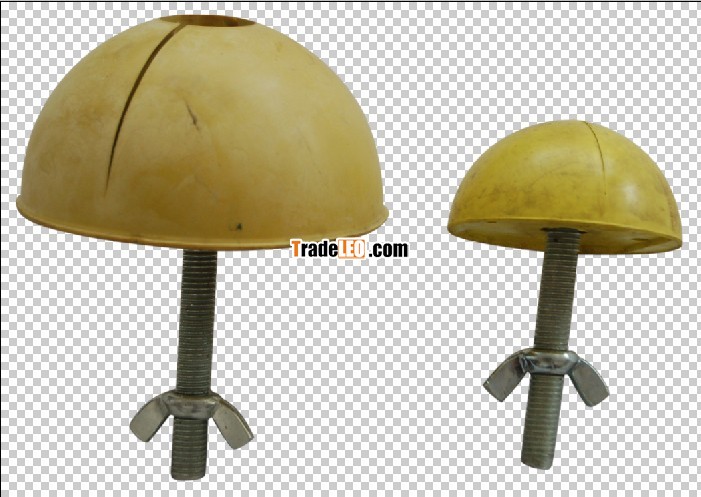

The round rubber recess formers are produced from stable shape, oil and temperature (120 deg) resistant rubber and can be used repeatedly. In order to ease the identification of the load groups the formers are produced in different colors.
| Part No. | Size | Material | weight |
| JCC001 | 1.25 T | PVC/Rubber | 0.050 |
| JCC002 | 2.5 T | PVC/Rubber | 0.096 |
| JCC003 | 5 T | PVC/Rubber | 0.360 |
| JCC004 | 10 T | PVC/Rubber | 0.890 |
|
Load Class (Ton) | Dimensions (mm) | |
| R | Color | |
| 1,3 | 30 | Blue |
| 2,5 | 37 | Yellow |
| 4.0 | 47 | Black |
| 5.0 | 47 | Blue |
| 7,5 | 59 | Red |
| 10.0 | 59 | Yellow |
| 15.0 | 80 | Grey |
| 20.0 | 80 | Black |
