Material

Black heart malleable iron

British Standard

Threads :ISO 7/1

Dimension: BS EN 10242, BS 143&1256

Chemical property

(C %2.4-2.9),   (Si %1.4-1.9),   (Mn %0.4-0.65),   (P% <0.1),   (S% <0.2%)

Physical property

Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB

Testing pressure

2.5MPa, 100% test before shipment

Working pressure

1.6MPa

Type

Banded without ribs, Beaded with ribs.

Size

1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6".

Surface

? Galvanized

? Normal black/Shining black

Series

Heavy, Standard, Medium, Light

Model

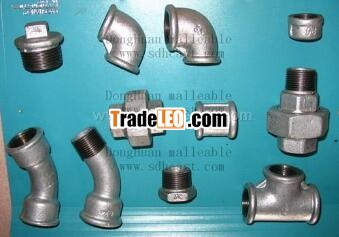

Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges,Side Outlet Tees, Side Outlet Elbows, etc.

Related products

1. Carbon steel nipples and sockets

2. Flanges

3. Carbon steel butt-welding fittings

4. Pipes

5. High-pressure fittings

6. Valves

7. P.T.F.E .thread seal tape

8. Brass fittings

9. Ductile iron pipe fittings

10. Copper fittings

11. Grooved fittings

12. Sanitary fittings, etc.

Connection

Male, Female

Shape

Equal, Reducing

Certificate

BSI, ANAB, ISO9001,FM,UL

Applications

Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.

Buyer’s drawings or designs are available.

Package

1. Cartons without pallets.

2. Cartons with pallets.

3. Double woven bags

Or as buyer’s requirements.

Delivery detail

According to the quantities and specifications of each order.

Normal delivery time is from 30 to 45 days after receiving the deposit.
