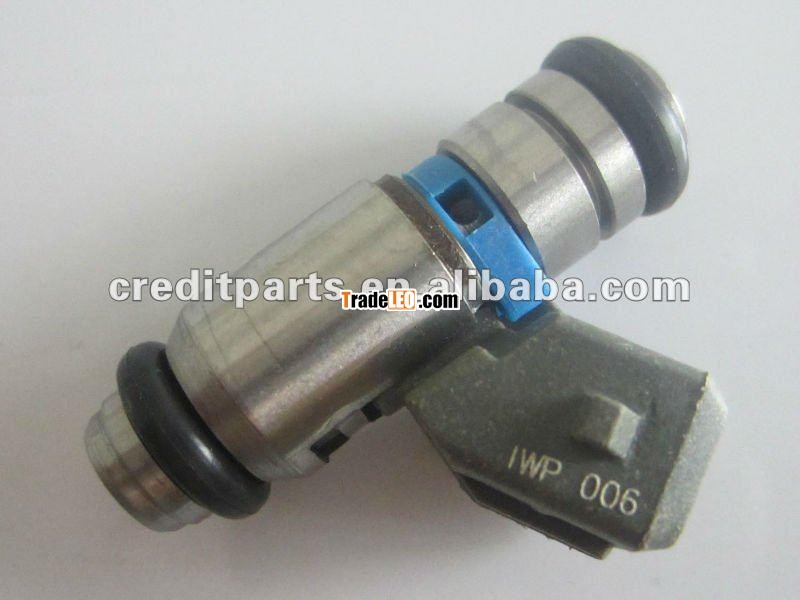

CITROEN VTS SAXO PEUGEOT GTI 106 RECON INJECTORS IWP006

Static Flow Rate: 19.0 lb/hr, 226 cc/min Dynamic Flow @ 2.5ms PW @ 100Hz

Technical Data Performance - Typical

• Linearity range (Tj = 4 ms): ± 2.5 %
• Max. fuel pressure allowed: 500 kPa
• Maximum duty cycle: 90 %
• Operating temperature range : -30 to 110 °C
• Vibration (peak): 30 g

Test conditions

• Fluid: N-Heptane
• density (@ 20°C) : 0.684 kg/litre
• Ambient and fluid temperature: 23 °C
• Power supply : 14 Vdc
• Injection frequency: Fully open
• Pulse duration: n/a
• Pressure : 3 bar

Mechanical Characteristics

• Height : 47.2 mm
• Outside diameter (connector excluded) : 15.3 mm
• Weight : 35 g

Electrical Characteristics

• Power supply : 8 ÷ 16 Vdc
• Resistance: 14.5 Ohm
• Inductance (at 1KHz: 12.0 mH
• Driver type : ON-OFF
