Carbon Firbe Wrapped CNG Cylinder For Vehicles - Sell

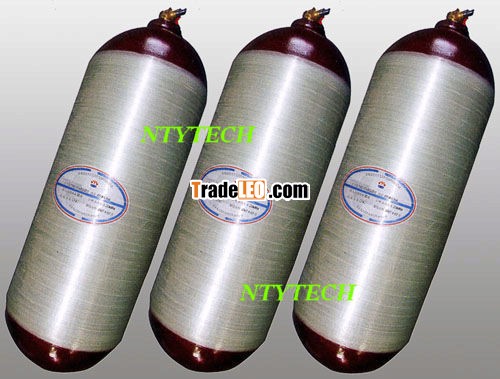

Carbon Firbe Wrapped CNG Cylinder For Vehicles

2016-10-26 21:10 Views:173

Price:Negotiable
Model:NTYT/CNP

Specification for Cylinder with Diameter 356mm
Model No.	Volume L	Standard	Length mm	Weight kg	Thickness mm	Bottom shape	Working/Testing pressure
CNP20-V-356A CNG Cylinder (34CrMo4)	57	ISO11439-2000	800	67	7.5	Round	20/30MPa
	65		890	72
	70		945	75
	77		1025	80
	90		1175	88
	100		1290	95
	110		1400	104
	113		1430	106.5
	120		1505	112
	130		1610	120
	145		1755	132
	150		1835	135

Specification for Cylinder with Diameter 406mm
Model No.	Volume L	Standard	Length mm	Weight kg	Thickness mm	Bottom shape	Working/Testing pressure
CNP20-V-406A CNG Cylinder (34CrMo4)	80	ISO11439-2000	870	91	8.8	Round	20/30MPa
	90		960	99
	100		1050	105
	110		1135	113
	120		1220	121
	130		1310	130
	140		1390	138
	150		1475	146
	165		1595	158
	180		1740	170
