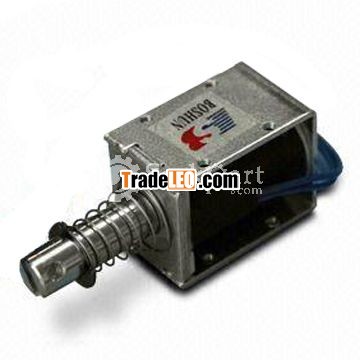

1.DC frame solenoid BS-0837L/S

2.DC 4-48V AC110 AC220

3.OEM/ODM welcomed

4.life:1,000,000 cycle min

5.%ED:100%,50%,25%,10%

BS-0837-11 Solenoid Parameter Datasheets:

working voltage:       DC24V±10%

current:                       1.58A(ref)

resistance :               at20°C  14.8Ω±10%

Force:                     DC 24 energize,stroke @ 6 mm,force over 900 gf

insulation resistance: 100MΩ MIN, DC500V

Hi-pot voltage:            DC700V/S

Insulaiton level:       CLASS B(130 degC)

Life cycle test :                 Nomal use life over 500,000 cycle  (ED=10% Maximum.)

Maximum temperature rise: Coil temp rise below 75°c
