Product Description

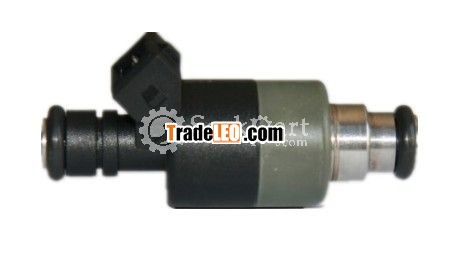

Nozzle 17103677 (fuel injector) applied to Daewoo autos.Specifications of nozzle 17103677 as below:

Application:GM DAEWOO CIELO CORSA 1.5L
Fuel input top-feed injector
Permissible fuel temperatures ≤70ºC
Mechanical data:
Working pressure max.4 bar
Weight ≤90 g
Electrical data:
Working power supply 12 V
Characteristic:
Spray type C(single beam) or E(twin beam)
Flow rate at 3 bar 134 up to 600 CC/min
Coil resistance 12.5ohm
Examples of Series Production:
Part number Flow rate at 3bar(CC/min)
17103677/17108045 166
17109450 195
QTY.(PCS):200
GW.(KG):19
NW.(KG):17
OEM No.17103677 17109450
