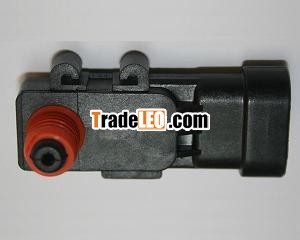

Model 601: Fuel Vapor Pressure Sensor

FEATURES

  -0.54 to +0.18 psig; -3.75 to +1.25 KPa; -0.038 to +0.013 bar
  1％FS Static Accuracy
  MEMS technology
  Programmable ASIC to meet customer specifications
  Low part count enhances reliability
  Amplified and temperature compensated
  EMI protection


DEscriptIONS
Joint Sensor Instrument Co.,ltd have been specialized in sensor manufacturing over 15 years. it is our honer to recommend you our Model 601 Map sensor.
Model 601 map sensor incorporates MEMS technology and custom Application Specific Integrated Circuit (ASIC) technology in the design. It is specifically designed for tough automotive application.
Model 601 is designed to perform in the underhood harsh environment such as temperature extremes, vibration, thermal and mechanical shock, and corrosive chemical. Typical applications include Fuel Vapor, Air Filter Quality, and Occupant Sensing (bladder type). Please contact us for special design to meet your requirements.

SENSOR SPECIFICATIONS

Electrical:
Supply Voltage                 5.0±0.5VDC
Supply Current           10mA max
Maximum Output Current Sink    1mA
Source                          0.1mA
Output Impedance         10ohms max
Output Type                 ratiometric
Output Voltage           0.5 to 4.5VDC at 5VDC excitation

Operating Characteristics:

Range                         -0.54 psig — +0.18 psig
                                -3.75 KPa — 1.25 KPa
                                -0.038 bar — +0.013 bar
Proof Pressure                  30KPa
Static Accuracy (%FS)           1.5max.

Environmental Effects:

Compensated Temperature Range -40℃ to +80℃
Storage Temperature Range -50℃ to +150℃

Mechanical:

Media Compatibility Media Compatible with Silicon

Notes:
1.       Static accuracy is the RSS of non-linearity, hysteresis, and non-repeatability.
