FUEL FLOW SENSOR :

Accuracy (standard installation position) : ±1% RS

Maximum working pressure: 10MPa (35~85%RH)

Fluid &Ambient temperature: -40 to80°C

Flow-rate range (±1% RS): 5 - 150L/h

Pulse unit: 0.661 ml/p (1513 P/L)

Power voltage: 3 - 24V DC

Output signal: NPN Open collector

Connection: R3/8(M) or ¼ female

Material of construction:

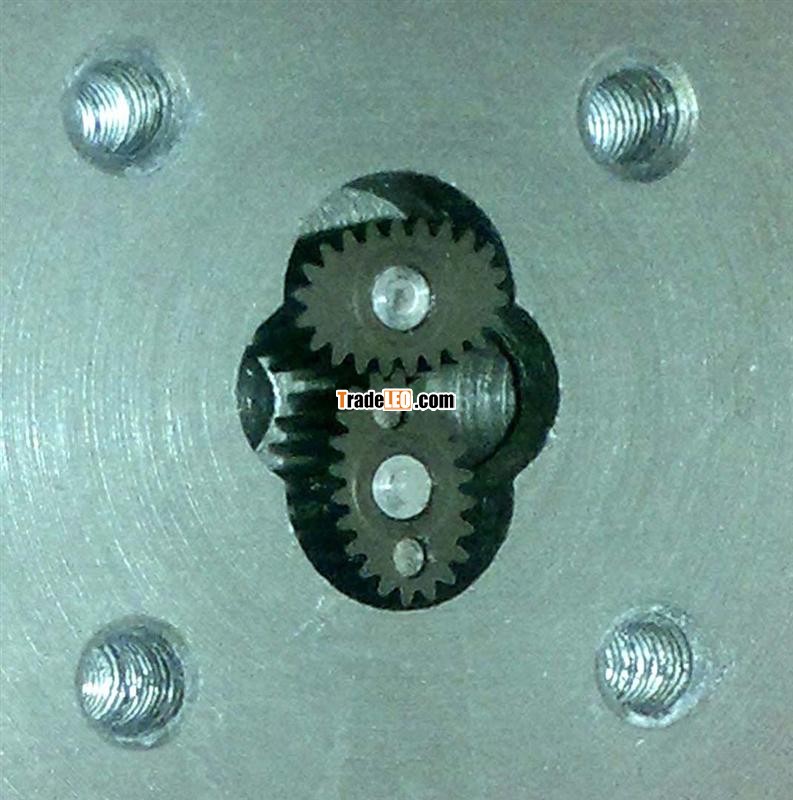

 Rotor and casing       :    Aluminum anodize/ PPS/S.S-316

O-ring                        :     NBR/VITON/SILICON

Shaft                          :     Stainless Steel/ hystrolite

Major fluids  : kerosene, Gasoline, diesel, light oil, heavy oil

flow range:

BT-DOFS-006(5~150L/H) : 0.000661 P/L

008(20~300L/H) : 0.0025 P/L

010(50~800L/H) : 0.0025 P/L

015(80~1,500L/H) :0.0085 P/L

020(150~2,000L/H) :0.0154 P/L

025(200~4,000L/H) :0.0256 P/L

040(500~10,000L/H) :0.086 P/L

050(600~20,000L/H) :0.19 P/L

065(800~30,000L/H) :0.36 P/L

080(1,000~50,000L/H) :0.54 P/L

100(2,000~100,000L/H) :1.0 P/L

150(5,000~150,000L/H) :3.2 P/L
