Specifications

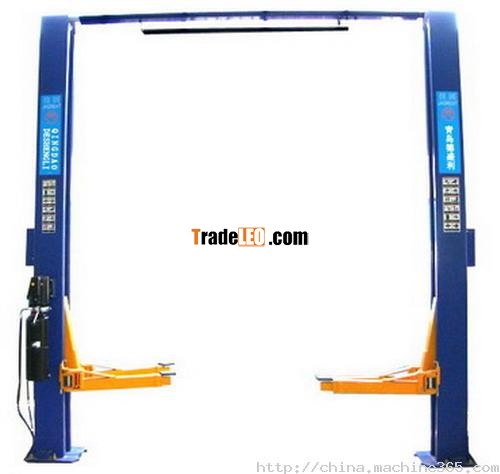

two poles auto lifter CWTPO602,auto lift,car hoist
CE & ISO
5.5T lifting capacity
lifting height:1961mm
hydraulic power unit

two poles auto lifter CWTPO602,auto lift,car hoist with CE and ISO

vehicle lifter features

Dual direct drive hydraulic cylinders

Cable-equalization system

Dual-point automatic safety locks,Single point release

Extra width between post

Automatic arm unlocking

Automatic stop in the highest position

5.5T lifting capacity

14 step automatic safety system

Specifications:

Working noise ≤ 75dB A
lifting time 50s
lower time 40s
Working temperature -5 40
Motor power 2.2Kw/220 380V
Working pressure 14Mpa
relative humidity 80%
Using altitude ≤ 1000m
lifting capacity 12,000lbs/5500kgs
Lifting height 1961mm

width between posts 2750mm
Whole height 3674mm
