Model:YD-FH2C
FTTH CABLE

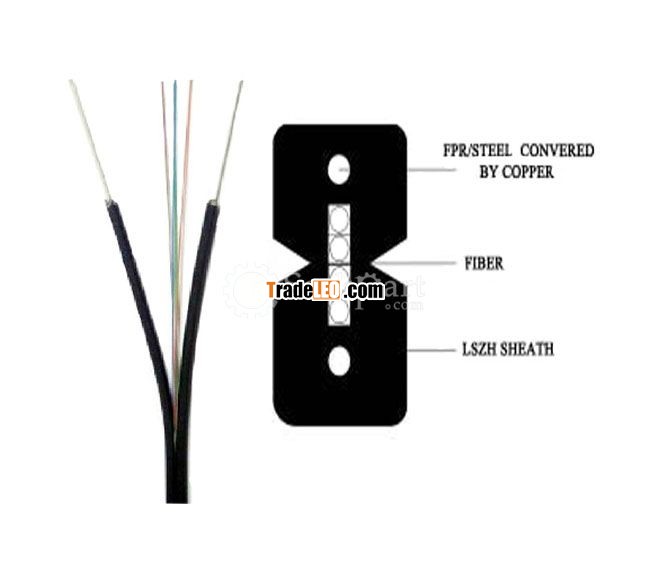

Product frame as below:
Description:
This specifications covers the optical fiber cable for laying in indoor installation. The optical fiber meets the requirements of ETISALAT specifications No: FCS-10
Single mode optical fiber characteristic:(bare fiber)
Item | Value |
Mode field diamter @1310nm | 8.6±0.4μm |
Cladding diameter | 125±1μm |
Core concentricity error | ≤0.6μm |
Claddding non-circularity | ≤1.0% |
Primary coating diameter | 250±15μm |
Coating-cladding concentricity error | ≤12.5μm |
Fiber curl radius | ≥4m |
Transmission characteristics: (bare fiber)
Item | Performance | |
Attenuation | 1310nm 1550nm | ≤0.40db/km ≤0.30db/km |
Marco bending loss | 30mm 10 tums at 1550nm | ≤0.50db |
Cut-off wavelength | ≤1260nm | |
Chromatic dispersion | 1310nm 1550nm | ≤3.5ps/nm.km ≤18ps/nm.km |
Zero dispersion wavelength | 1300-1324nm | |
Zero dispersion slope | ≤0.092ps/nm2.km | |
