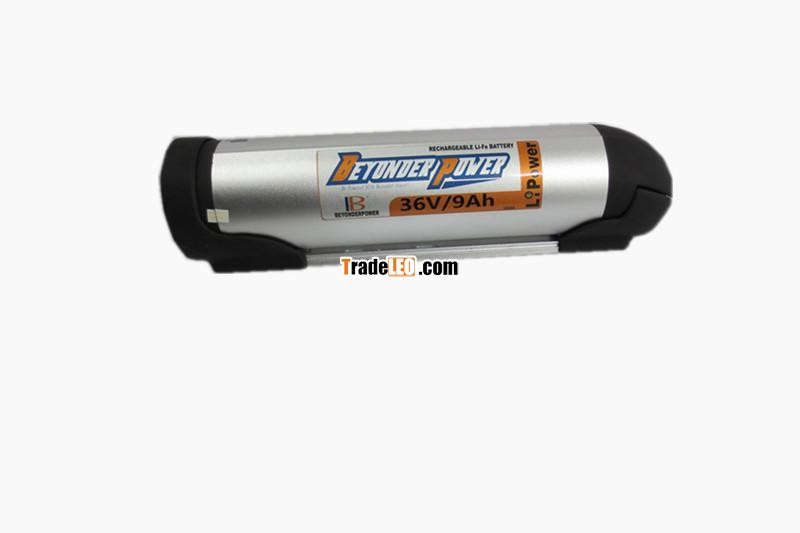

Lithium polymer battery for electric bicycle--Front fork type

Material Type: LiMn2O4

Model No.: BD-EBLM3609-DC1

Nominal voltage: 36V

Nominal Capacity: 9Ah

Dimension: 85*105*380mm

Weight: 2.8kg

Standard charge: CC/CV

Charge current: 2-5A

Max charge voltage: 42V

Discharge current: 10A

Discharge cut off voltage: 28-31.5V

Cycle life: 500 times

Charge temperature: Environmental temperature: 0℃-45℃

                                  Environmental humidity: 40%-85%

Discharge temperature: Environmental temperature: -20℃-60℃

                                       Environmental humidity: 40%-85%

Storage: Storage temperature: -10℃-45℃

              Relative humidity: 65%±20%

Safety performance: No fire, no explosion, no leakage when over-charge/over-current/short circuit/water immersion.
