Model:krm 201
Send Inquiry

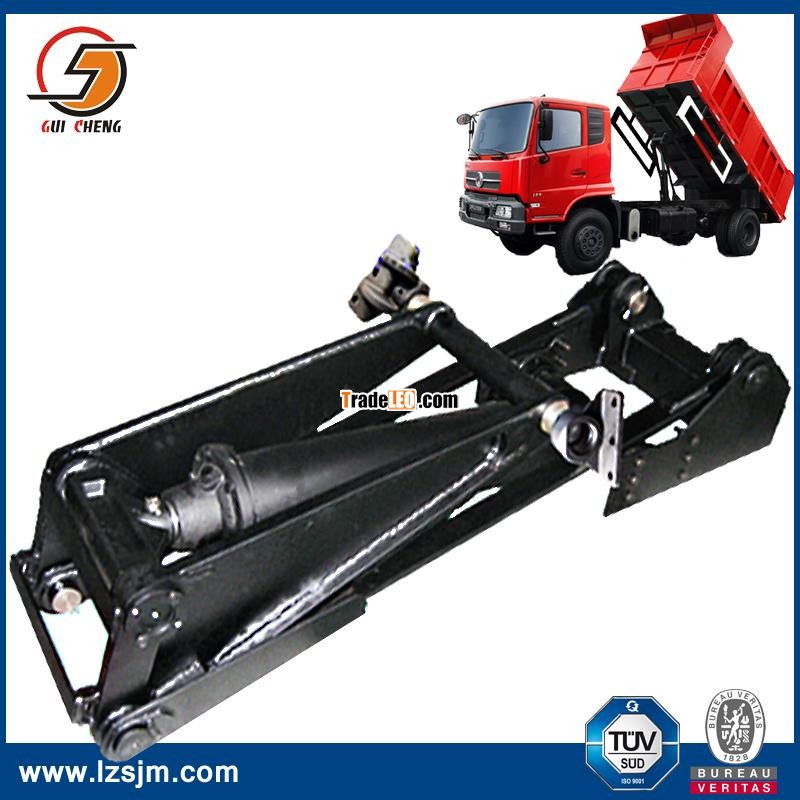

Main data of lifting system for dump truck
Hoist Mechanism, Dimensions and Weight (approx.)
Length(mm) | Width(mm) | Height(mm) | Min.closing length(mm) | Weight(kg) |
1722 | 525 | 430 | 1152 | 298 |
Hoist Cylinder and Pump Combination Specification (approx.)
Hoist Cylinder KRM160C | Working Pressure(MPa) (Kgf/cm2) | 6.9 |
Gear Pump KP-75A/B
| Standard Revolution (rpm) | 800 |
70 | |||||
Inner Diameter (mm) | 160 | Discharge Volume(ml/rev.) | 72 | ||
Stroke (mm) | 755 | Max. Testing Pressure(MPa) (Kgf/cm2) |
| ||
Min. mounting distance (mm) | 1075 | 20.6 | |||
210 | |||||
Piston Rod diameter (mm) | 70 |
Weight(kg) |
22 | ||
Max. pressure (MPa) (Kgf/cm2) | 15.7 | ||||
160 |
