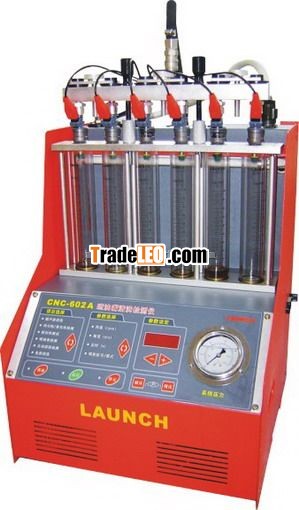

Launch CNC-602A injector cleaner  tester

Launch CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

Feature

Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
* Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
* Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
* Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
* Auto. test: To test injectors by simulating different working conditions.
* On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

Specification

 Power supply: □AC220V±10%, 50/60Hz;□AC110V±10%, 50/60Hz.
* Input power: 250W;
* Ultrasonic cleaner power: 100W;
* Simulated RPM range: 10～9990rpm; step: 10rpm;
* Time range: 1～9999s;
* Pulse width: 0.5～25ms; step 0.1 ms;
* Fuel tank capacity: 4700ml;
* Dimensions: 385mm×410mm×500mm;
* Weight: about 35kg

Spare Parts

1   CNC pulse signal connection cable 1,T=0.5
2   CNC pulse signal connection cable 2,T=0.8
3   Ultrasonic cleaner assembly 100W
4   On-vehicle adaptor package(tool kits)
5   CNC-602A user manual(En&Ch)
6   Top-supply connector 1
7   Swiss thread adaptor for fuel top-supply injector
8   Coarse thread adaptor for fuel top-supply injector
9   CNC-601/801 Hexangular stopper
10   CNC-801 BUICK injector adaptor
11  Injector testing liquid
12   Injecter detergent
