We have been successfully servicing the very needs of our customers for over 30 years. Since 1980, YOUIL ENSYS has matured into a prominent leader in the enviroment-friendly engineering industry.

The Air Suspension System is a vibration absorption device which utilized the compressibilty of air. It is a key component of the vehicle to make it comfortable, and has been developed with our technology of rubber and vibration control. Our device confidently competes with the leading global brands, such as Bridston, Goodyear, and Continental. We also supply rubber mount systems, which isolates vibrations on the axles and the springs, worldwide.

(Rolling lobe Air Suspension System)

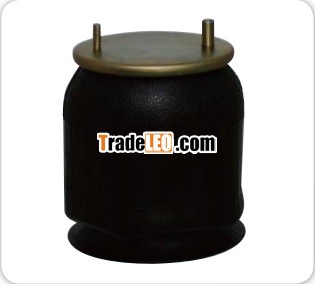

YOUIL AIR SPRING - YD241031

SPECIFICATIONS

Standard Height:     320mm

Load @ 6kgf/cm2 : 3,086 kgf

Max Load:             3,555 kgf

Min Load:              1,523 kgf

Max Effective Pressure: 7kgf/cm2

Min Effective Pressure:  3 kgf/cm2

Spring Deflection

    -Compression: 135mm

    -Extension:      160mm

Replaces:  FIRESTONE W01-358-9219

www.en.youil.com
