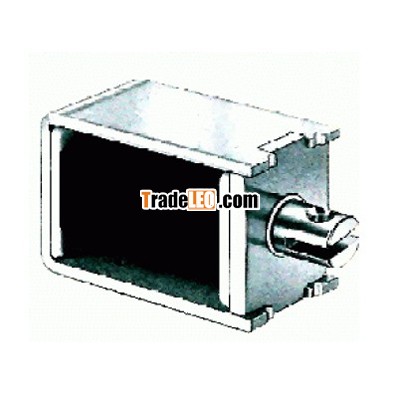

NC-0837L/S series solenoid

Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other).

This type is built with spring,pull type

Stroke:Over 5mm

Voltage:3-220V AC/DC

Temp:-5°c-45°c

Relative Humidity:20%-80%

Voltage:AC 100V±5%

Current:13mA

Resistance:At 20°c 2.03KΩ±5%

Insulation Resistance:100 MΩ MIN,DC 500V

Insulaition Level:Class B

Life cycle:Over 100 000 cycle in nomal status.

Specification:37mmLX20mmHX26mmW

We provide coustomed design solenoid.

 Please  Provide  Your  Specification  As  Below:

1.Voltage:

2.AC/DC:

3. Current:

4.Stroke:

5.Force:

6:Push/Pull type:

7.On/Off time(Max on time or off time):

8.Duty cycle(%Energized):

9.L*W*H or Outward appearance(diameter/size):

10.Ambient Temp:

11.What product do you use solenoid for:

12.Other specification you need us do:

We  are  accroding to  your specification  to make sample  for your product  and  satisfy  your  need.Thanks for  your  attention.

Nextcore Electronic Industry(HK)Co.,Ltd was established in 2008, we are a manufacturer specialized in AC/DC solenoid,solenoid valve,coil and arounding plastic, metal parts.
