Model:JH11

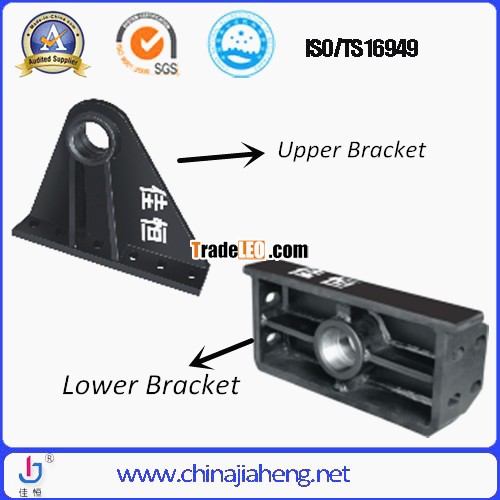

Upper Bracket/Lower Bracket/Mounting Bracket for dump truck, trailer, tractor
It is used to install various kinds of cylinders, easy to control and maintain.
about Us
----We produce hydraulic cylinders and related spare parts over 10 years. Now having all kinds of advanced equiments morn than 200 sets, such as: Hole grinding machine made in American, full-fuction CNC machine, computer checking platform and so on.
----Hydraulic cylinder is our superstar production, we can also produce and supply all kinds of spare parts, such as brackets, valves, gear pumps, oil ppe, oil tanker and other hydraulic parts, it is recognised around the world for its good performance.
-----Other related products we can supply:
1. Lifting valve: Small size, steady pressure, safe and reliable
2. Gear pump: Small size, strong power, long life
3. Hydraulic oil tank: Multiple cleaning protection
4. Gas valve: Proportional control and easy manipulation
5. Limit valve: To optimize the process of use and improve the lifting frequency
6. High-pressure oil tube: Durable, dust proof, not rust.
| List of JIAHENG hydraulic spare parts | ||||
| OEM.NO | Name of Part | Specification | Material name | Quantity |
| | cylinder assembly | Depend on customer demand | | |
| 02.002.007.0001 | Enlarge frame assembly | Model3268 | Enlarge frame | 1 |
| 02.003.001.0002 | Upper support | HG081 | 3271upper support | 2 |
| 02.003.001.1009 | Lower support | HG091D | Butterfly 75 holes lower support | 2 |
| 02.004.0005 | Gear pump | JHCB-6100-A11 | Gear pump+ Change valve | 1 |
| 02.005.0003 | The Slow downcombination control valve | MZKQF34 | Control valve | 1 |
| | φ6 pipe connector | 4 | ||
| | φ6 pipe connector seals | 4 | ||
| | Support for control valve | 1 | ||
| | M6 bolt | 4 | ||
| 02.006.002.0016 | Oil pipe with accessories | φ32I-3000 | Low pressure pipe | 1 |
| 02.006.001.0043 | φ19II-2500b-M36×1.5-M30×1.5T | High pressure pipe | 1 | |
| 02.006.001.0044 | φ19II-2600b-M36×1.5 | High pressure pipe | 1 | |
| 04.998.00018 | | φ42-46 pipe strap | 2 | |
| | Oil tanker with accessories | Reference oiltanker.xlsx. | | 1 |
| 04.083.00003 | φ24×3.10 | "0" rign | 1 | |
| 04.998.00015 | | shock absorber | 4 | |
| 04.998.00034 | Air tube with accessories | | φ6Three way pipe joint | 1 |
| 04.998.00038 | 20m | φ6 air tube | 1 | |
