Specifications
Due to the highly sensitive nature of AdBlue/DEF,AILE developed Adblue/DEF Automatic Nozzle in an effort to avert contamination.

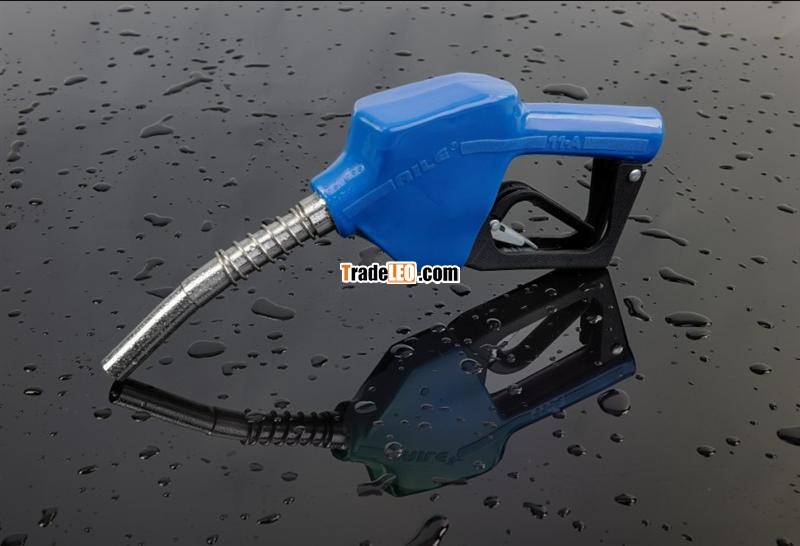

DEF Automatic Nozzle

Due to the highly sensitive nature of AdBlue/DEF,AILE have developed specific dispensing nozzles in an effort to avert contamination.
Adblue automatic nozzle features a device that stops the flow when the tank is full.

Spill free delivery into the Vehicle requires the use of an Adblue automatic Nozzle.

Due to popular demand, the 11A nozzle is now produced entirely from stainless steel and features a three position trigger latch which provides varied flow conditions for different sized Adblue/DEF tanks.

Note: Prevents mis-fuelling of AdBlue/DEF into Diesel tank



Specification

Filling Nozzle   Automatic trigger nozzle with safety cut out valve

Mechanism :       3-speed lever latch

Materials of construction: Stainless steel,Viton

Fittings:         BSPP3/4" , NPT 3/4" inlet

Flow range:      12-45 liter/min

Max pressure:     5 Bar

Diameter :       19mm

Colour :          Blue



Before beginning installation of the product, please carefully read all warnings.
? Follow all manufacturer’s instructions.
? Use safety cones to mark-off work area.
? Shut off power to the dispenser and close the emergency shut-off valves under the dispenser.
