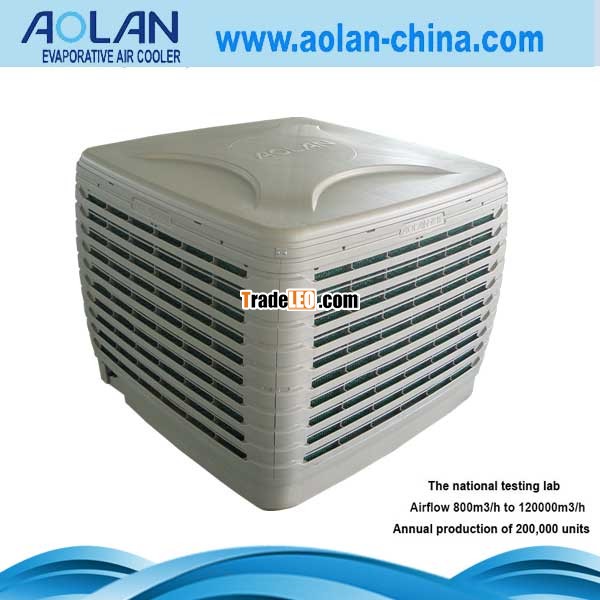

Pessure 190 pa down discharge evaporative air cooler

Model:AZL18-ZX10E

characteristics
1.Streamline design,durable and beautiful appearance
2.Swirl designed drain outlet,easy to let off sewage
3.With integrate and special triangle water distribution structure,making the water distribute evenly
4.with concealed design,the water will not enter into the cooler when the pipe is accidentally detached or broken
5.With a damper to prevent warm air leakage in winter
6.With a outside dust screen which can be easily removed and cleaned
7.Using intelligent LCD controller,which is easy to operate and understand
8.The casing is made of high strength weather ability polymers which is UV-proof,anti-aging,and resistant to deformation
9.Using specially designed axial fan,with large airflow,low noise,energy-saving and large application.
10.Using high quality aluminum housing motor,with good heat dissipation,high protection grade,waterproof and moisture-proof

Specification AZL18-ZX10E
Fan Capacity (m3/h) 18000
Full Pressure (Pa) 190
Voltage/Frequency (V/Hz) 220/50
Rated Currency (A) 5.6
Fan Type Axial
Fan Speeds 1-phase,variable speeds
Noise (dB) ≤76
Fan Diameter Φ600
Water Consumption (L/h) 15-25
Water Capacity (L) 30
Application Area (m2) 100-150
Drive Distance (m) 25-30
Auto Cleaning √
Water Lack Protection √
Dimension (mm) 1150×1150×950
Net Weight (kg) 80
Operation Weight (kg) 110
