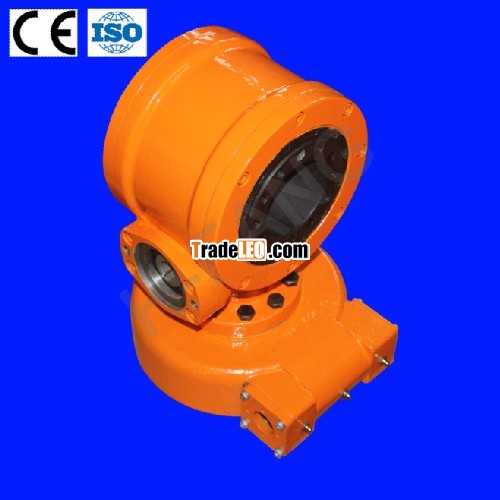

Model:SDE7A.5 Slew drive
Wenli@h-fang.com.cn
SDE7Slew drive for 2 kw daul axis solar tracking system
Gear Ratio:73:1
Output torque:1500Nm
Tilting moment Torque:13500Nm
Holding torque:10400N.m
Static Axial Rating:133KN
Static Radial Rating:53kN
Dynamic Axial Rating :32KN
Dynamic Radial Rating:28kN
Weight:45Kgs
1.Huafang slewing drive are widely used in the solar tracking systems, special construction vehicles, port machinery and small wind turbines
2.Huafang is fully equipment with all advanced machines for manufacturing, assembly, inspection, test processes and automatic cleaning and painting and power coating lines.
Formore information,pls contact us!
| Model | Output Torque | TilTing Moment Torque | Static Axial Rating | Static Radial Rating | Gear Ratio | Tracking Precision |
| SE3C | 0.4 kN.m | 1.1 kN.m | 30 kN | 16.6 kN | 62:1 | <=0.2° |
| SE5A | 0.6 kN.m | 3 kN.m | 45 kN | 22 kN | 62:1 | <=0.2° |
| SE7 | 1.5 kN.m | 13.5 kN.m | 133 kN | 53 kN | 73:1 | <=0.2° |
| SE9A | 6.5 kN.m | 33.9 kN.m | 338 kN | 135 kN | 61:1 | <=0.17° |
| SE12A | 7.5 kN.m | 54.3 kN.m | 475 kN | 190 kN | 78:1 | <=0.17° |
| SE14A | 8 kN.m | 67.8 kN.m | 555 kN | 222 kN | 85:1 | <=0.17° |
| SE14-2 | 12KN.M | 67.8 kN.m | 555 kN | 222 kN | 85:1 | <=0.17° |
