Model:T02

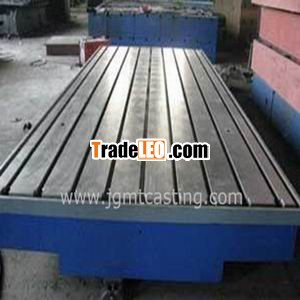

Cast Iron T Slot basePlates is widely used in machining, tool shop, machine (the seizure) repairworkshop, large equipment base, measuring rooms and precision machining of theinspection, measurement and grinding, and can accurately measure, testworkpiece flatness, straightness and tolerance of the angle.
The flatness of topsurface varied from DIN876/0, DIN876/I, DIN876/II to DIN876/III. The raw materialis high-strength cast iron GG20-GG30 (HT200-HT300), and the hardness isHB170-240.
Standard sizes:
| No. | Sizes (mm) | Surface accuracy (according to DIN876) |
| 1 | 2000*2000*300 | I/II/III |
| 2 | 2500*2000*300 | I/II/III |
| 3 | 3000*2000*300 | I/II/III |
| 4 | 3500*2000*300 | I/II/III |
| 5 | 4000*2000*300 | I/II/III |
| 6 | 4500*2000*300 | I/II/III |
| 7 | 5000*2000*300 | I/II/III |
| 8 | 5500*2000*300 | I/II/III |
| 9 | 6000*2000*300 | II/III |
| 10 | 6500*2000*300 | II/III |
| 11 | 7000*2000*300 | II/III |
| 12 | 8000*2000*300 | II/III |
Othersizes and surface accuracy on request!
