Brand:zzsintec
Model:XTS01
Send Inquiry
Product Description
we can supply ssic/sic/carbon/TC/NBR/Viton

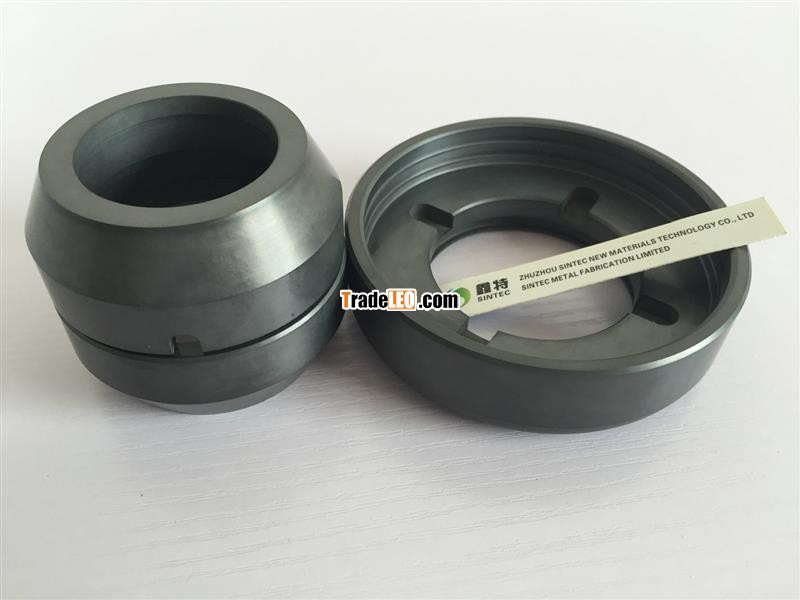

pump part,o ring,face seal, mechanical seal,sic seal
bearing and tubes
sic blank has the advantages of excellent corrosion resistance,high coefficient of heat conductivity,self-lubricity,small expansion.It can be widely used in the petroleum,chemical,machinery-building,cosmonautics and motors industries.The frictional factor of combination of silicon carbide and carbon graphite is the least,so it widely applied to high characteristics for mechanical seals .
| Properties | Units | Silicon Carbide(SiC) | |||
| SSiC | SiSiC | RBSiC | |||
| Mechanical | Density | g/cm3 | >3.1 | >3.02 | 2.6-2.7 |
| Color | ------- | Black | Black | Gray | |
| Water Absorption | % | 0 | 0 | 16% | |
| Vickers Hardness | Gpa | 24 | 23.5 | ------- | |
| Flexural Strength(20°C) | Mpa | 480 | 460 | >100 | |
| Compressive Strength(20°C) | Mpa | 3200 | 2500 | ------- | |
| Thermal | Thermal Conductivity (20°C) | W/m.k | 150 | 125 | 24 |
| Thermal Shock Resistance (20°C) | T(C) | 300 | 400 | ------- | |
| Maximum Use | °C | 1600 | 1380 | 1650 | |
| Electrical | Volume Resistivity (25°C) | Ω.cm | 5x107 | 1 | ------- |
You can contact us for details and get what you want.
Thanks.
