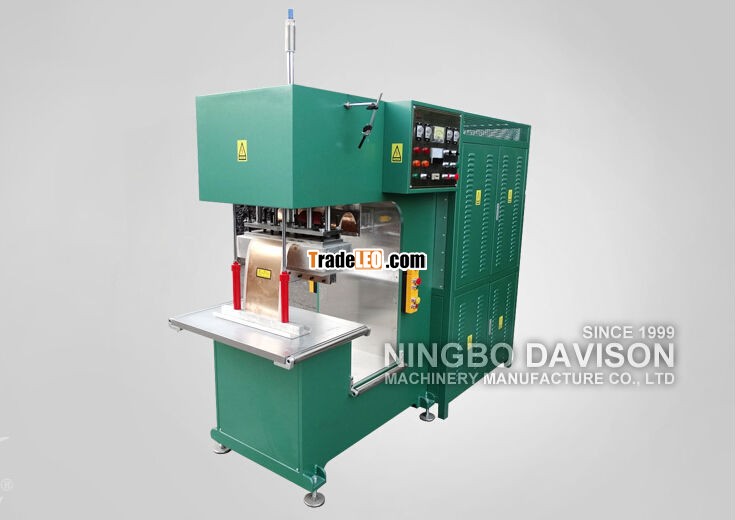

Model                                 DXCW-SH-15KW

Output power                     15KW

Voltage                                3phase 380V

Frequency                           27.12MHZ

Upper clamp                      1000x250x35mm

Lower plate                        1100x280x35mm

Welding area                      about 27,000 to 30,000mm2

Welding time                       0-10s

Dimension                         2650x1180X2100

Applications
Truck Cover Canvas/ Membrane structure
Advertising ink jet cloth /Tarpaulin tent ,Awning, parking shed
Large Swimming pool covers / Water tank

Machine overview and features
1.?different welding area decide?the?different?output?power. ?output power from 15 KW to 35KW
2.?There?is?through?designed?specially?for?putting?material?conveniently.
3.The?welding?time?can?be?adjusted?according?to?different?material?and?thickness.
4.machine equiped with current limiter , can help the worker find the most stable output power , and the?current not over the setting parameter?.
5.Auto tuning(output power) adjustor ( by button )
6.With laser placing

Optional items
1. Touch screen programmable HMI / PLC
2. Frequency Stabilizer
