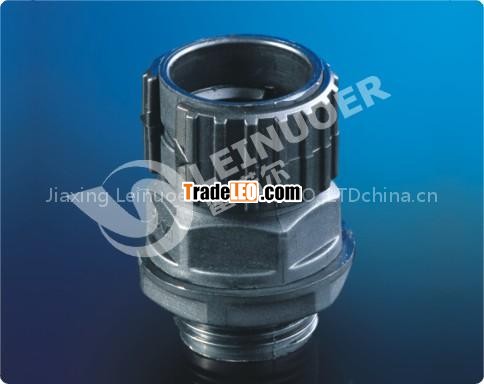

fast union for flexible pipe
2016-10-28 20:03  Views:169
Price:Negotiable
Model:LNE-SM
Send Inquiry

Product code: LNE-SM

Product material: PA (polyamide), the outer fastening ring: polyformaldehyde (POM)

Specification of thread: Metric/PG/G thread

Working temperature: -40~+110℃

Color: Black. Other colors are customizable

How to use: LNE-SM type fast joints are the fittings of the flexible pipes, which can be either connected with the housing of equipments or connected with electric equipment with inner threaded access hole as per the thread selected. Simply insert the flexible pipe into the union.

Item No.Suitable flexible pipeMetric dimension of threadAG Outer diameterAG Inner diameterGL
(mm)		HPackaging unit: Units/pack
LNE-SM-M12AD10.0M12×1.512.08.01018.0100
LNE-SM-M16AD10.0M16×1.516.0101019.0100
LNE-SM-M16AD13.0M16×1.516.0101019.0100
LNE-SM-M18AD15.8M18×1.518.012.01023.050
LNE-SM-M20AD18.5M20×1.520.014.31225.050
LNE-SM-M20AD21.2M20×1.524.017.01327.050
LNE-SM-M24AD21.2M24×1.524.017.01327.050
LNE-SM-M25AD25.0M25×1.525.019.51430.050
LNE-SM-M25AD28.5M25×1.525.022.02030.020
LNE-SM-M27AD28.5M27×2.027.022.01433.020
LNE-SM-M32AD34.5M32×1.532.026.02035.010
LNE-SM-M36AD34.5M36×2.036.029.01435.010
LNE-SM-M48AD42.5M48×2.048.036.51538.58
LNE-SM-M60AD54.5M60×2.060.053.01639.05
Item No.Suitable flexible pipeDimension of threadAG Outer diameterAG Inner diameterGL
(mm)		HPackaging unit: Units/pack
LNE-SM-PG7AD10.0PG712.38.01018.0100
LNE-SM-PG9AD13.0PG915.0101019.0100
LNE-SM-PG11AD15.8PG1118.412.51023.050
LNE-SM-PG13.5AD18.5PG13.520.214.31225.050
LNE-SM-PG16AD21.2PG1622.317.01327.050
LNE-SM-PG21AD28.5PG2128.022.01433.020
LNE-SM-PG29AD34.5PG2936.729.01435.010
LNE-SM-PG36AD42.5PG3646.736.51538.58
LNE-SM-PG48AD54.5PG4859.053.01639.05
Item No.Suitable flexible pipeG dimension of threadAG Outer diameterAG Inner diameterGL
(mm)		HPackaging unit: Units/pack
LNE-SM-3/4AD25.0G3/425.019.5143050
LNE-SM-1″AD34.5G1″32.026.02035100
