Model:FCS2151-SD-420T
Send Inquiry

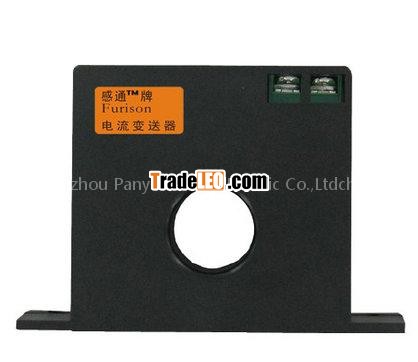

current sensor current transducer FCS2151-SD-420T input0-100A 150A 200A AC output4-20mA RMS DC
Application of Current transducer: Feature of current transducer: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specifications: FCS521/FCS2151 Power Supply15-42 Vdc at sensor (loop powered) Operating Temperature -30C to +70°C(32 to 104 ° F) Input Current RangesThree field selectable ranges, 0-10/0-20/0-50 Amps or 0-50/0-100/0-200 Amps Operating Humidity0 to 95% RH, non-condensing Maximum Input Current 10/20/50 Amp ranges – 80/120/200 Amps continuous 50/100/200 Amp ranges – 175/300/400 Amps continuous Protection CircuitryReverse voltage protected and output limited Response Time250 mS (0-90%) WiringSolid Core – Barrier strip AC Conductor Hole Split Core Split Core Enclosure MaterialUL 94 V-0 flammability rated ABS Enclosure Size: below dimension. (H x W x D) Solid Core Split Core Output Signal & Accuracy4 to 20 mA represents 0 to 100% of current span. Better than ±1% FS on all three ranges | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Attention:0-5V,0-10V output are do not need power supply. Disconnect and lock-out all power sources during installation as severe injury or death can result from electrical shock due to contact with high voltage conductors. Ensure all installations are in compliance with applicable electrical codes and that the installation is completed by qualified installers familiar with the standards and proper safety procedures for high-voltage installation. Never rely on status indicating devices only to determine if power is present in a conductor. Insure the range selection jumper is installed in the correct position for the current being monitored. Excessive current can damage the sensor. See below for information on setting the jumpers. Install the Split-Core over the conductor to be monitored and close the sensor until it latches, ensuring that the two halves are properly aligned. Operation of the sensor will be impaired if any dirt particles prevents good contact between the core pieces when the device is closed, keep the sensor clean when it is opened. Mount the switch in a suitable location using the two mounting holes in the base of the unit. The conductor may be looped more than once through the sensor to multiply the sensitivity but this also divides the maximum currents. For example, on the 0-200 amp scale, if the conductor is looped through twice, the maximum current will now be 100 amps. Connect the output circuit to the two screw terminals using ring or fork type terminals. Typical connections are shown in the wiring examples. Note polarity as indicated on the device label. To allow field calibration, all devices have easily accessible calibration pots. The devices may be calibrated to custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
