Model:NGD-TS-00001
Send Inquiry

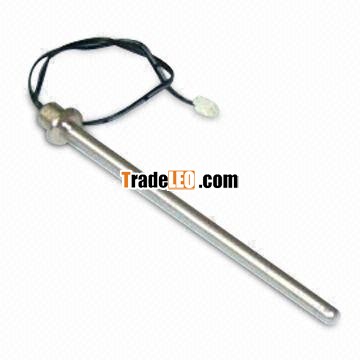

| Air-condition sensor |
| Wide operating temperature range: -20 to +125Celsius degree |
| Dielectric strength: 1,500V AC for one second |
| Short thermal response time in water, high stability in moisture |
| Suitable for use in high-temperature and moisture environments |
| High accuracy, Different tolerancr available ,Cost-effective |
| UL approval ,RoHS complianted |
| Customized specifications are welcome |
| Technical data: |
| Max power:At 25Celsius degree=350mW |
| Resistance tolerance :1%--10% |
| Rated temperature :25Celsius degree |
| Insulation resistance: greater or equal100Mohm |
| Dissipation constant: MIN.3mW/Celsius degree still air |
| Thermal time constant : 20 seconds max (still air) |
| Moisture resistance:(40Celsius degree 95% RH)1000 hours |
| Recommended Applications: |
| 1.Temperature measurement in household appliances: |
| (air condtioner,refrigerator,dryers,cooker,small appliance) |
| 2.Automobile |
| 3.Widely used for Water Heater;air-condition;Bean Juice Maker |
