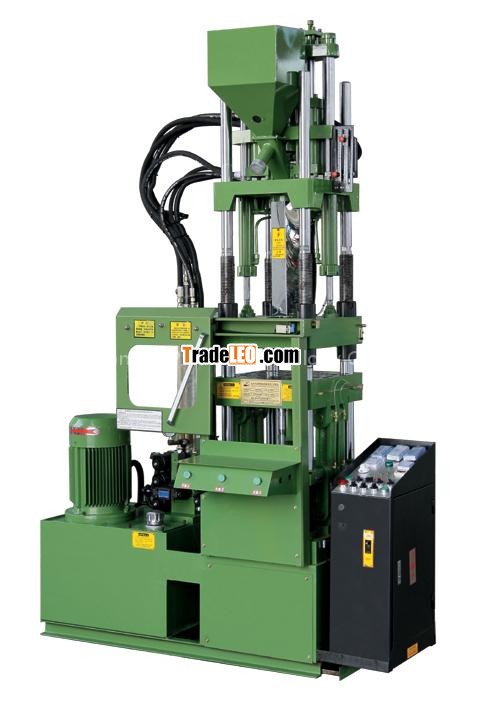

Model:TY-63
Send Inquiry
| Item | Unit | 63g |
| Screw Diameter | mm | 30 |
| Screw Speed | r/min | 0-200 |
| Theoretical Shot Volume | cm³ | 75 |
| Injection Rate | g/s | 55 |
| Injection Weight | g/s | 64 |
| Injection Pressure | mpa | 150 |
| Clamping Model | — | Double Toggle |
| Ejector Force/Stroke | mm | 35 |
| Clamping Force | kn | 550 |
| Max. Mould Platen Stroke | mm | 200 |
| Mould Thickness | mm | 320 |
| Space Between Tie Bars | mm | 300x200 |
| Mould Size | mm | 450x350 |
| Heating Power | kw | 3.5 |
| Motor Power | kw | 4 |
| Machine Weight | T | 0.8 |
| Machine Size | M | 1.44X0.9X2.25 |
