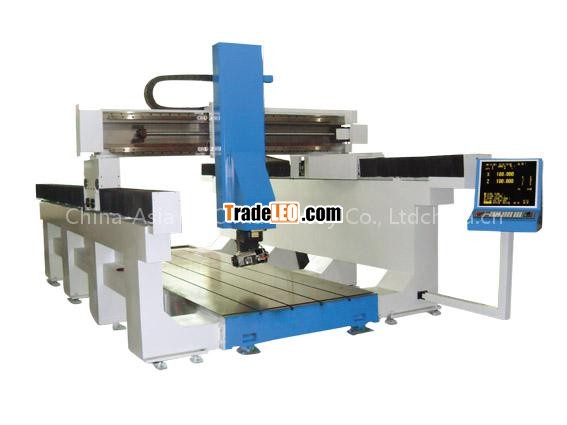

Model:YHV4020
Send Inquiry
5 Axis Machining:
- It employs the advanced five-axis linkage system.
- The processing speed is fast due to the adoption of 3-axis track.
- The machine tool precision is detected and corrected through ball bar and laser interferometer.
CNC Five-axis linkage Machine | YHV4020 |
Table Size(mm) | 1550×4080 |
X-axis Travel(mm) | 4000 |
Y-axis Travel(mm) | 2000 |
Z axis Travel(mm) | 900 |
A-axis Rotation | ±112° |
B-axis Rotation | |
C-axis Rotation | ±213° |
T-slot Width(mm) | 18 |
Maximum Table Load Capacity(kg) | 5000 |
Spindle Taper Hole | BT30 |
Spindle Speed(rpm) | 24000 |
Feed Rate (mm/min) | 0~15000 |
Main Motor (kw) | 5 |
Positioning Accuracy of Linear Axle (mm) | 0.2 |
Positioning Accuracy of Revolving Axle(mm) | 12 |
Machine Dimensions (L × W × H) (mm) | 6600×3500×3400 |
Machine Weight(kg) | 13000 |
Standard Configuration | Configuration Optional | System Optional | ||
CNC System | Cooling System | Tool Setting Gauge | Central China CNC System | |
Four-station Tool Rest | Lighting System | Milling Chuck and Detachable Cutter Block | SIEMENS CNC System | |
Machine Tool Operating Manual | Heat Exchanger for Power Switch Box | OMORI CNC System | ||
Lighting System | Air-Conditioning for Power Switch Box | PA CNC System |
