Technical parameters:

Engine: Honda OHV4-stroke cooled gasoline engine

Drive System: Automatic hydraulic stepless transmission system

Making speed :0-4km / h

Climbing Degree: 15 °

Heating method: liquefied petroleum gas

Paint Capacity: 200kg (50L)

Glass beads Capacity: 15kg

Marking Width: 100mm/150mm/200mm/300mm

Machine Weight: 220kg

Overall dimensions: length 1200mm × width 900mm × high 1000mm

Main features: It adopts scorching quality, Anti high temperature , anti-oxidation special steel stamping Soup base, imported energy-efficient stoves, can be directly melt the paint in paint bucket, a single heat melt is 2 times than an ordinary hot melt marking machine, CVT drive system which saving manpower meanwhile greatly improved efficiency of construction.

Structural features: The machine adopts cast aluminum alloy hopper warehouse with high mass sensitivity, high stability; floor knife imported  Cutter hard tungsten alloy, anti-adhesive wear; Structura is rugged and simple, flexible operation, close freely, to ensure that the designated marking trimming, end-butt, coating evenly and line appearance well. Glass beads spray device synchronized with the paint scraper clutch deposition systems and spray quantitative. Rubber wheel adopts plastic casting steel wheels, special high temperature and anti-wear rubber .

Main application :

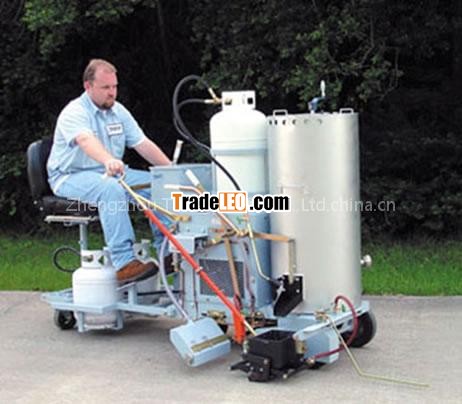

Self-propelled hot melt marking machine is the key equipment during hot melt marking  construction , can be using matched without hot melt kettle. Used for highways, urban roads and hot melt Reflex marking such as  straight line, dotted line, curves, arrows, text and other designated facilities.
