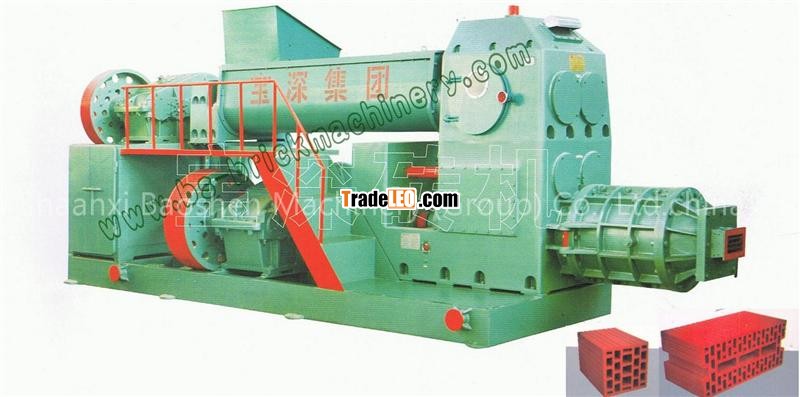

clay brick machine--Double stage vacuum extruder

1. It is suitable for producing Multi-hole bricks, hollow bricks and solid clay bricks with different size.

2. The best choice for making  Hollow / multi-hole bricks of the bigger hollow ratio. like this kind of bricks:

3. Vacuum extruding

4.  High extruding pressure

5.  Lower moisture water content

5.  Intensity of the green bricks is very big

6.  High production capacity

7.  Wide practicability (not only the clay but also the hard material, such as gangue, shale etc are suitable for JK series extruder)

8.  Longer service life etc.
Technical Parameters:

Type JKR35/35D-20

Production capacity (pieces/hour) 7000-9000  (This is the conservative capacity based on China Standard Brick Szie:240*115*53mm. In the actual production, we have up to 11000 pieces per hour.)

Equipped power (kw)  Upper stage: Y250M-6-30

                    Lower stage; Y315L-6-55

Rotation speed of main shaft(r/m) Upper stage:  32

                            Lower stage:  32

Dimension(mm)L×W×H 5040×1600×2000

Vacuum degree: ≤ - 0.092

Extrusion Pressure (MPa): ≥2.0

Moisture water content(%): 19~21

Plasticity index of raw material: 7~15
