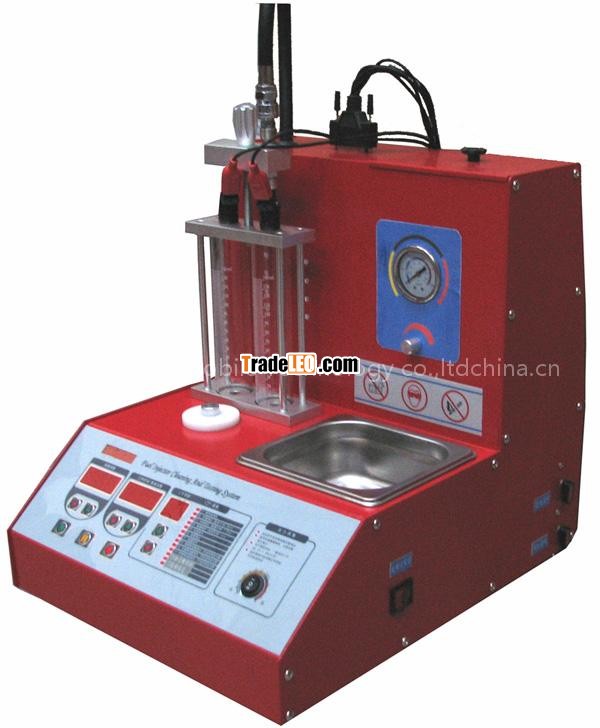

2 Jars Motor Fuel Injector Tester & Cleaner MT-20

This fuel injector tester & cleaner can simulate engine’s various operating conditions, to test and clean motor injectors and fuel systems, can check and test injectors’s injection situation: atomization / sprayingangle / spraying mount / spraying uniformity etc.

Functions & Features:

1.        Ultrasonic heated cleaning: can clean for one or two injectors at the same time, remove carbon deposit completely

2.        Uniformity testing: check injection uniformity of each injector

3.        LED display

4.        High definition tube display, makes operation clarity and easy

5.        Adopt electronic voltage control technology, make oil pressure stable, and adjust range wide

6.        Tank level visual display, test liquid can be reused.

7.        Allowed to adjust the injector test time, frequency, injection time, the shortest switaching cycle etc. within range.

Specifications:

Fuel Tank Capacity: 2000 ml

Cylinder Capacity:　　　125 ml

Rotational speed range:0~7500 r/min

Injection times: 0~9900tims   step 100ms

PWM pulse width:0~20.0 ms  step 0.1 ms

System pressure: 0~0.6Mpa   adjustable

Timing: 0~20min    adjustable

Ultrasonic cleaning power:70W

Ultrasonic cleaning Frequency:28 KHZ±0.5 KHZ

MEAS: 580*540*495mm

Weight: 20Kg
