Model:CA50 70 100 140 210

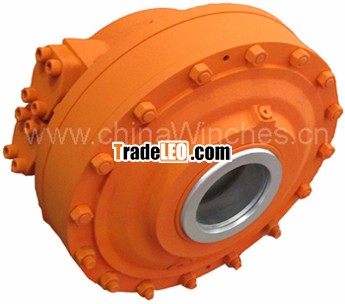

Hagglunds Compact CA series Inner Curve Hydraulic Piston Motor.
Model range: CA50, CA70, CA100, CA140, CA210.
Hagglunds' compact CA motor was designed for one specific purpose: to power heavy-duty applications with minimum size and weight. Its light and compact design yields a superior ratio of power to weight, Among the popular features of the Compact CA are its ability to handle shock loads and its useful through hole. These, as well as the motor's numerous mounting options, make it a small but flexible powerhouse that provides advantages in many applications.
technical performance data below:
Metric Motor type | Full displacement | Max. speed r/min | |||
Displacement | Specific torque | Rated speed | Max. speed | ||
Vi cc/rev | Ts Nm/bar | n rev/min | n rev/min | P bar | |
CA50-20 | 1256 | 20 | 340 | 340 | 315 |
CA50-25 | 1570 | 25 | 298 | 340 | 315 |
CA50-32 | 2010 | 32 | 238 | 340 | 315 |
CA50-40 | 2512 | 40 | 196 | 298 | 315 |
CA50 | 3140 | 50 | 170 | 238 | 315 |
CA70-40 | 2512 | 40 | 238 | 340 | 315 |
CA70-50 | 3140 | 50 | 191 | 272 | 315 |
CA70-60 | 3771 | 60 | 166 | 234 | 315 |
CA70 | 4400 | 70 | 153 | 204 | 315 |
CA100-40 | 2512 | 40 | 332 | 340 | 315 |
CA100-50 | 3140 | 50 | 272 | 340 | 315 |
CA100-64 | 4020 | 64 | 221 | 332 | 315 |
CA100-80 | 5024 | 80 | 187 | 264 | 315 |
CA100 | 6280 | 100 | 162 | 230 | 315 |
CA140-80 | 5024 | 80 | 208 | 289 | 315 |
CA140-100 | 2680 | 100 | 174 | 234 | 315 |
CA140-120 | 7543 | 120 | 153 | 208 | 315 |
CA140 | 8800 | 140 | 145 | 187 | 315 |
CA210-160 | 10051 | 160 | 89 | 128 | 315 |
CA210-180 | 11314 | 180 | 85 | 115 | 315 |
CA210 | 13200 | 210 | 72 | 98 | 315 |
