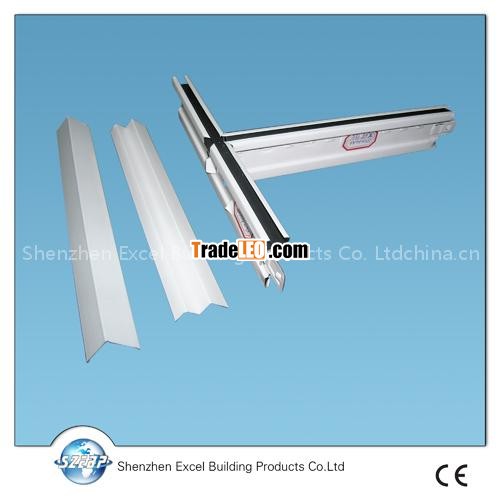

Ceiling grid:
- Dimension :
Length : Main Tee up to 3.75 meters ,Cross Tee up to 1.22 meters ,
Width : at 15mm and Hight from 25mm to 42mm .
We can produce any size to meet and install your ceiling .
- Colour : The surface is white , but for the groove , there are many colours can be chose , such as black , white , etc .
STANDARD SIZE FOR FLAT SURFACE T GRID SYSTEM |
| ||||
|
|
|
|
|
|
Item | Description | Width (mm) | Hight (mm) | Thickness (mm) | Length |
1 | U15 MAIN TEE WITH 8mm GAP | 15 | 42 | 0.25~0.40mm | up to 3.75 meters |
32 | 0.25~0.40mm | up to 3.75 meters | |||
26 | 0.25~0.40mm | up to 3.75 meters | |||
U15 CROSS TEE WITH 8mm GAP | 15 | 42 | 0.25~0.40mm | up to 1.22mmm | |
32 | 0.25~0.40mm | up to 1.22mmm | |||
26 | 0.25~0.40mm | up to 1.22mmm | |||
2 | U15 MAIN TEE WITH 5mm GAP | 15 | 30 | 0.25~0.40mm | up to 3.75 meters |
25 | 0.25~0.40mm | up to 3.75 meters | |||
U15 CROSS TEE WITH 5mm GAP | 15 | 30 | 0.25~0.40mm | up to 1.22mmm | |
25 | 0.25~0.40mm | up to 1.22mmm | |||
